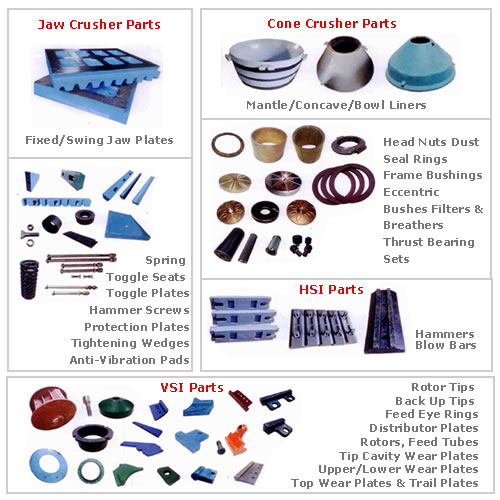

We produce spares & wear parts for most of the commonly used crushing equipments. Our range of products includes high manganese & high carbon highcrome (HiC HiCr) alloy castings for wear parts we also deal in centrifugally cast bronze alloy for critical sapres like ecentric / frame bushings & thrust bearings.

Replacement Parts Suitable for Metso, Norberg, Sandvik, Puzzolana, Nawa, Terex, Pegson, Finlay, Loro, Pari Sini, Keuken, Ecoman, Extex, Parker, L&T, Bergeaud & Others.

We supply rubber conveyor belting for use material handling in various industries. Our belts are produced as per IS:1891:1994, DIN 52516 standards, Our range includes :

• General purpose M24, N17 grade belts with abrasion resistant cover
• Heat resistant belts for temp upto 180°c
• Fire resistant belts with antistatic properties as per CSA, DIN, AS and GOST Standard
• Oil Resistant Belts
• Chemical Resistant Belts for Corrosive conditions
• Hygienic belts for food industry
• Chevron belts for high inclination conveying

Special Abrasion Resistant Belts for use in tough and challenging conditions are also made fot the aggregate industry. We also sell accessories for conyeying systems such as impact and carrying rollers, brackets, pulleys, & skirting material.

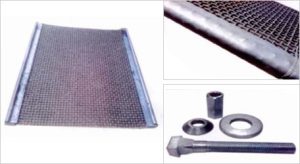

We produce wire meshes for use in variety of screening equipment. Wire of spring steel as per IS4454:1981 Part1 are used to make these meshes. These high carbon wire have abrasion and distortion resistant properties required for optimum life of the screens.
The mesh canbe provided unclamped & with either ‘c’ type or ‘s’ type clamping o ends depending upon the tpes on screens in which they are used :-

• Screens clamping plates
• Clamping Bolts
• Rubber Support

TMPL manufactures mechanical Rock Bolts of sizes 16mm to 36 mm dia in various lenghts, for use in mines, tunnel & embankments as rockanchors.
Rock bolts is a Stressed or tensioned reinforcement element consisting of a od, mechanical or grouted anchorage and a plate and nut for stressing by providing torque to the nut or for retaining tension applied by direct pull. it is also know as active rock.

Rock Bolts are produced from TMT Fe 500 grade ribbed steel bar as per IS:8266-1986 specifications in various tupes below.

Expansion Shell Type
These bolts use expansion shells & plugs made of cast steel with left hand thread, firmly gripping the rock & the bolt forming anchorage.

Resin/Cement Grouted Type
These anchors are machined conically at one end &are threaded on the other. the conically tapered end is pushed into the resin/cement cartridge placed at the bottom of the drill hole.

Rock Bolts Spares & Accessories
Heavy Duty 2H HEX Nuts, Bevel washers, Taper washers, Hardened plain washers, Bearing plates etc.

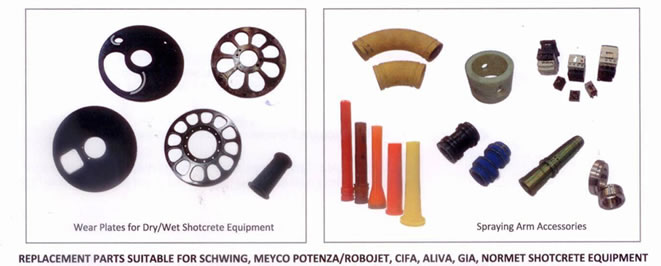

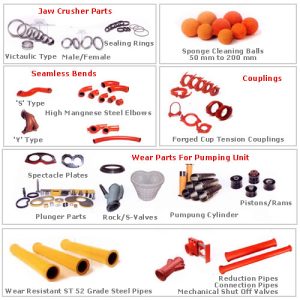

We produce spares and wear replacement parts suitable for commonly used concrete and shotcrete pumps. Delivery lines & accessories are made up of wear and a abrasion resistant seamless pipes/forgings which are perfect for tough & demanding working condition. tough & demanding working conditions.
Some parts are made in high manganese casting for optimum working life and minimum breakdown. Special alloy steel parts with TC inserts are used for pumping units parts which have to endure very high abrasion. we specialise in pumping unit parts and delivery lines for these machines.
Replacement Parts Suitable for Putzmeister, Schwing, Cifa, Greaves, Aquarius, Sany And Others

Victaulic type Grooved pipes are made out of ERW black black steel pipes conforming to IS:1239 or seamless pipes as per ASTM 106 Gr . B depending on the requirement of the job.
The pipes have collared groove ends, which allow minor adjustments and deflection in the straight pipeline, on account of undulating surfaces and/or mis-aligment in the direction.

• Cut groove for heavy duty and thick wall pipes.
• Collar welded/roll groove for light duty and thin wall pipes.

Clamps & Seals
The clamps are of SG Iron Castings with 2 bolt design for quick fixing with a rubber sealing to give a leak proof joint.

We deal in replacements parts including consumables sutiable for use in :-

• Rock drill, Feed & drifter
• Oil / Air / Water filters
• HL X5 & HL500 Drifter Spares
• COP 1238 ME / SE Atlas Copco parts or consumable items like slide bars, slide piece, centralizer

we keep in stock major items like pull rope, return rope, bushing, spring, springs, slide holder, driver, hose drum, pulley etc.
We also produce the complete range of hydraulic hose assemblies for these.

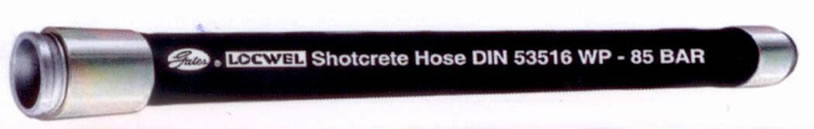

TMPL is proud to launch a special Shotcrete hose for conyeing construction material in equipment used for soli/surface stablization in the evergrowing construction activity in tunneling, Mining under ground structures and in rehabilitation works.
Produced exclusively for VSAPL by Gated Indian & Co branded as Lockwel shotcrete hose, it has been specially made for use in rough & highly abrasive condition as conveying hose for the modern age shotcrete equipment. Initial offering is of the 75mm ID Hose, which is most widely used and the company plans to follow it up with more sizes in future depending on the markets need.

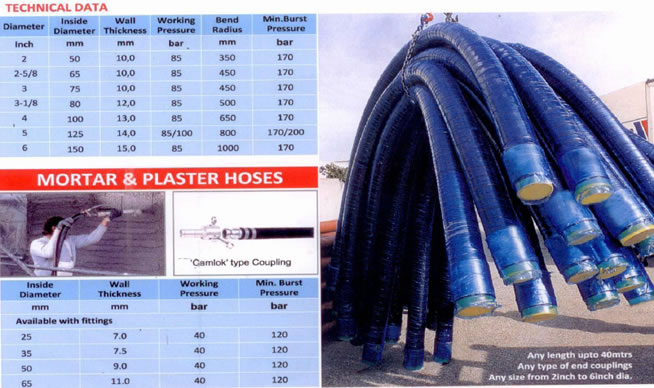

TMPL is proud to be asspciated with atop German company for distribution of their range of concrete pump & Mortar Horse. These hoses are suitable for use with hydraulic conveying pupms at highest pressure rates & is used for conveying construction material.
Main Features are

• Black Smooth tube with good abrasion resistance in extruded version (abrasion resistance acc to DIN 53316: < 90cm)
• 4 Layer Reinforcement made of high tension steel wire.
• Black abrasion & weather resistant cover, cloth marked finish
• Max. Production lenght : 40cm
• On request, these hoses can be fitted with couplings at one or two ends.
• For use as terminal hose or as delivery hose for shotcrete.
