Cradle Series RF02

Cradle Series RF02
Your Unified Media Center

Unify Your Workflow, Amplify Your Potential

Introducing the Cradle Series RF02

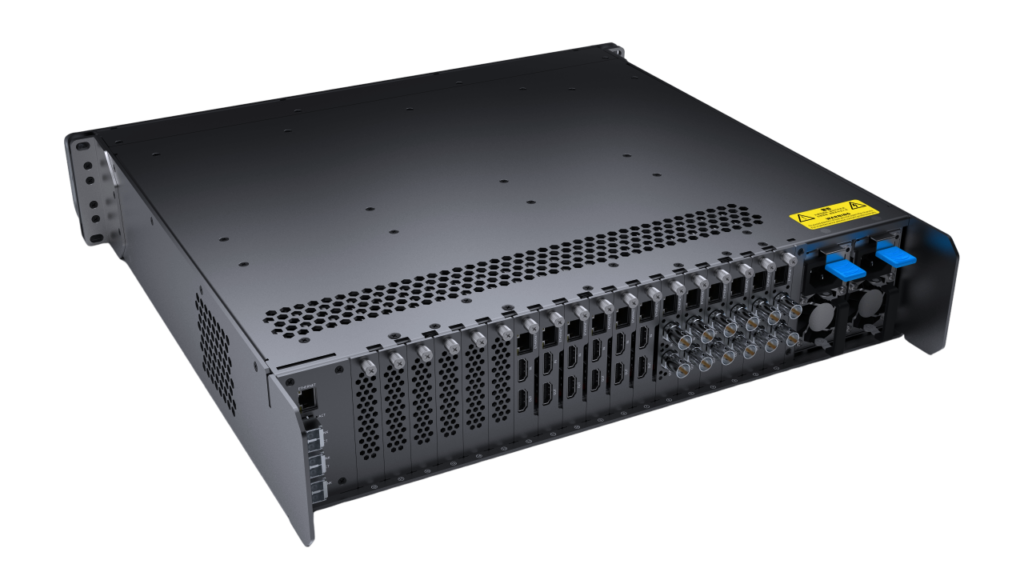

Cradle Series RF02, the flagship rack-mounted media platform from Kiloview, is your ultimate media management center. Within its 2RU high-density structure, the RF02 supports flexible configuration of up to 18 card modules, enabling encoding, decoding, media gateway, bonding, etc. Its modular design replaces the clutter of multiple standalone devices with a streamlined, unified solution, providing the most complete and lightweight AV-over-IP solutions for broadcast-grade production, medical imaging transmission, remote education, live event streaming, and more.

*With different modules installed it can deliver expanded functionality over time.

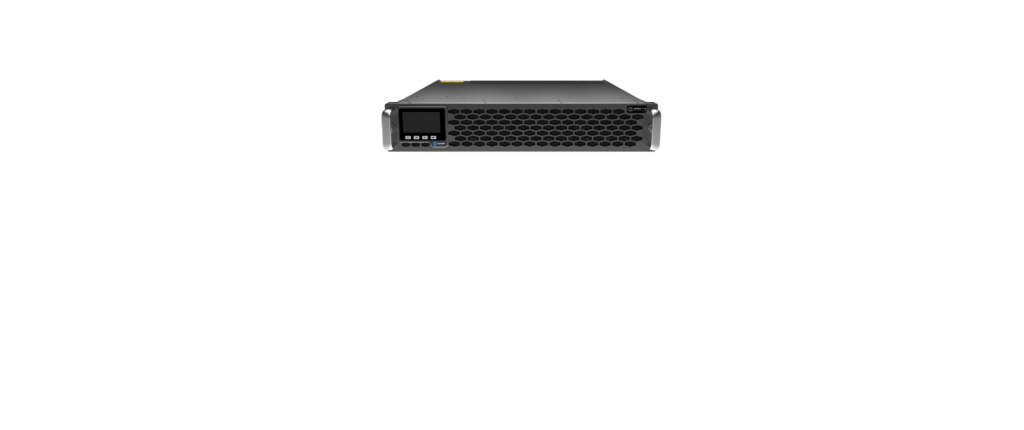

Built-in High Bandwidth Switch

Save Big – Cut the Cost of a Switch!

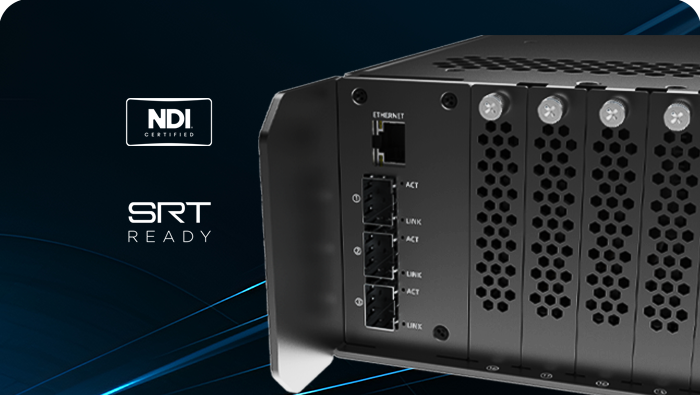

High-Speed Connectivity

The RF02 provides three 10Gbps SFP+ fiber Ethernet interfaces and one 10Gbps RJ45 Ethernet interface, ensuring effortless handling of high-bandwidth NDI streams.

Integrated Network Switch

Equipped with a built-in 1G/2.5G network switch module that interconnects all module cards, RF02 supports a full range of capabilities including encoding, decoding, NDI conversion, media gateway, bonding, etc.

Efficient Data Flow

RF02 streamlines the data flow within the platform, eliminating the need for external network switches. This setup not only reduces setup complexity and costs but also enhances the reliability of data transfer.

Centralized Management with

KiloLink Server Pro

Unified Control

RF02 is powered by an ARM64 main controller running a customized version of Kiloview’s KiloLink Server Pro, purpose-built for this platform. It enables automatic discovery, monitoring, and configuration of all module cards through a unified interface. *Planned updates will enable unified management of external devices and interconnectivity across the Kiloview ecosystem.

On-Premise Bonding Service

With media gateway card FMG-400, RF02 can serve as an on-premise server for Kiloview’s P Series 4G/5G wireless bonding encoders, providing secure and reliable remote device and bonding management. Paired with a decoding card, it can seamlessly output remote video streams to SDI or HDMI at various resolutions.

Streamlined Operations

The platform automatically identifies and manages all workflow streams, allowing users to monitor status, assign sources, and configure settings with ease—greatly reducing manual effort while ensuring stable, low-latency transmission.

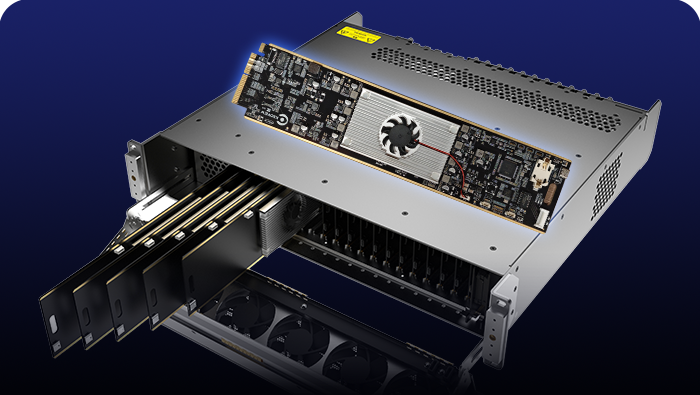

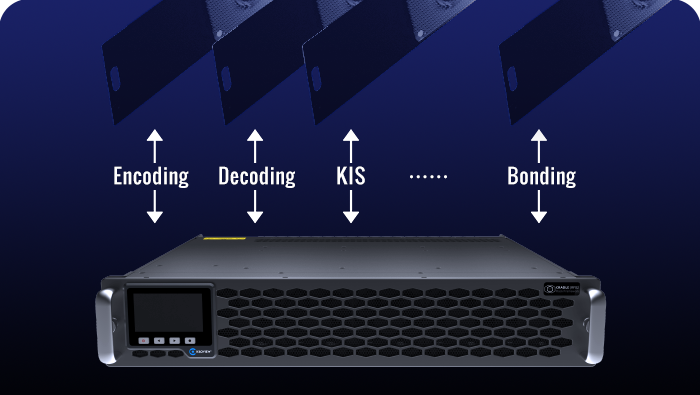

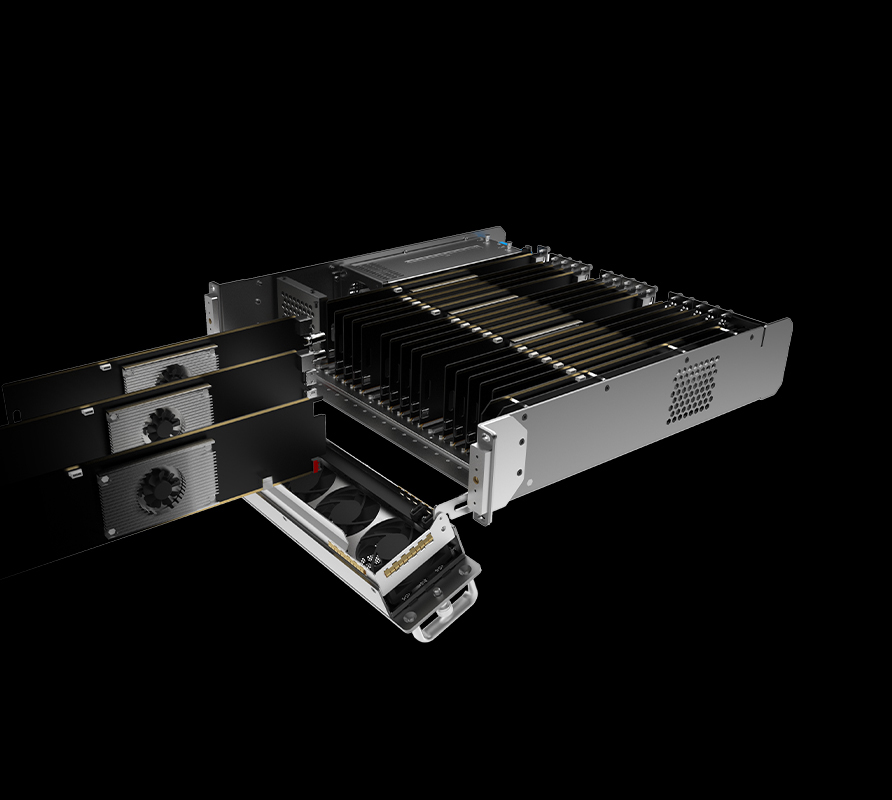

Modular Design for Flexibility

Supports Up to 18 Service Cards: RF02 features a 2RU modular design supporting up to 18 cards—including encoding, decoding, media gateway, and bonding. Each module operates independently, ensuring system stability and greatly enhancing reliability.

Customizable Configurations: RF02 offers customizable configurations with mixed card support, allowing seamless integration into diverse media workflows and rapid deployment of tailored processing systems.

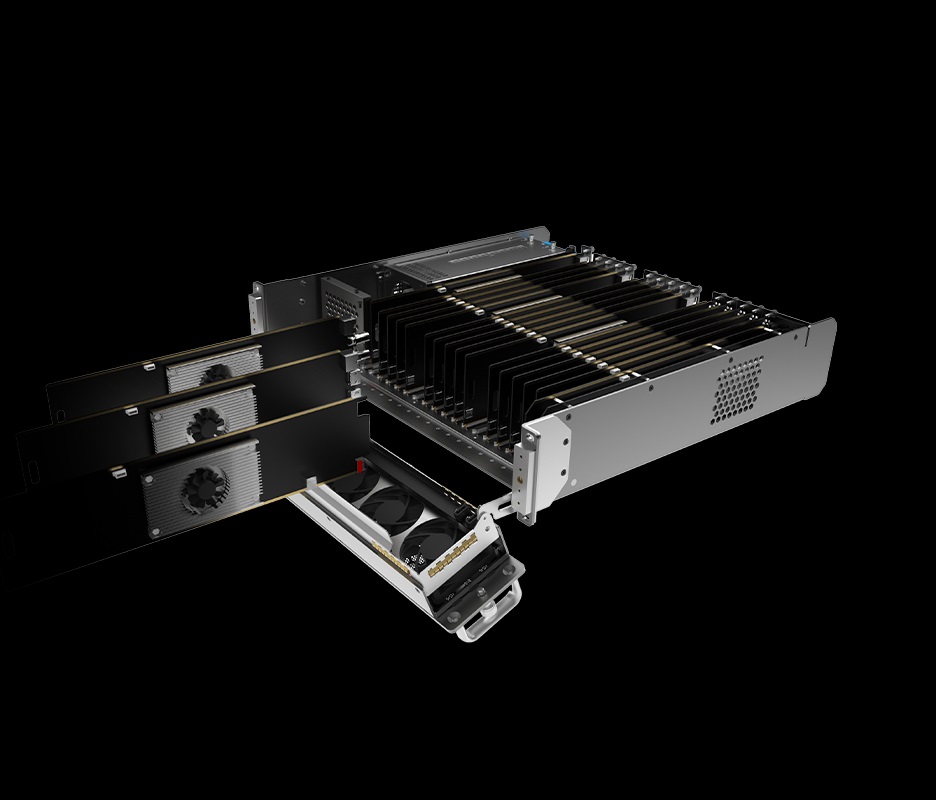

Modular Control &Switching Design: RF02 features a replaceable main controller and network switch module, enabling independent upgrades of core components without replacing the entire unit—significantly reducing maintenance costs and extending system lifespan.

High Density with Space-Saving Design

With a 2RU compact design supporting up to 18 modules, RF02 integrates encoding, decoding, media gateway, and bonding services in one unit—saving rack space and simplifying workflows, making it an essential in modern AV infrastructures.

Seamless Integration Across Workflows

Unified System: RF02 integrates encoding, decoding, media gateway, and bonding services into a unified platform, ensuring seamless compatibility across all module cards. Its optimized architecture enables precise multitasking, reduces reliance on external devices, and enhances overall workflow efficiency.
Reduced Setup Needs: The RF02’s integration capabilities make it a versatile solution for any media environment, enabling smoother operations and faster project turnarounds.

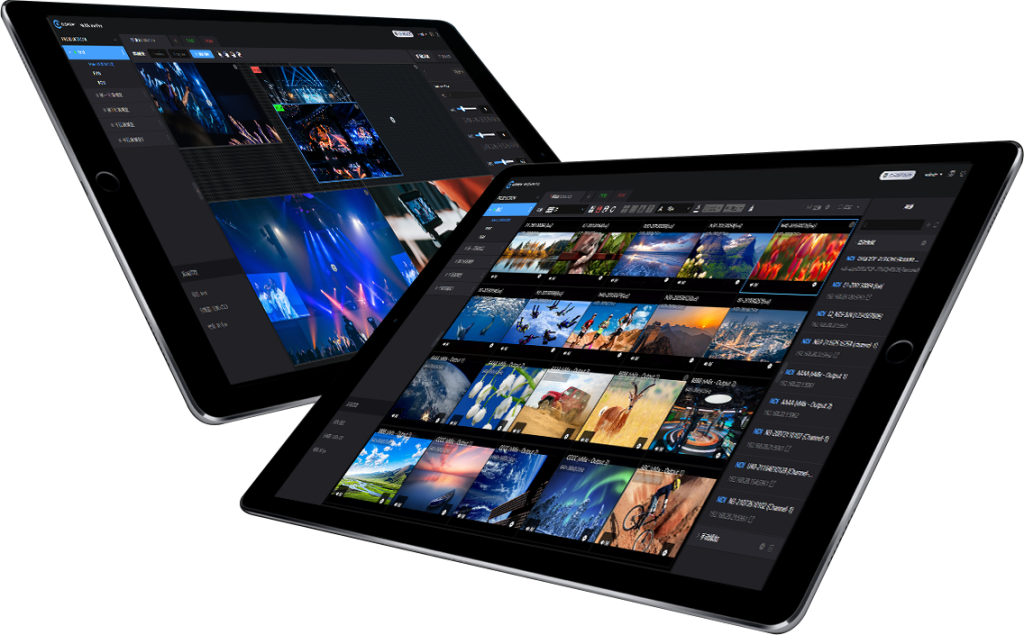

Intuitive Control Panel: RF02 features an intuitive control panel for centralized control of devices and media streams, making workflow management simpler, more flexible, and more efficient.

Reliable Performance

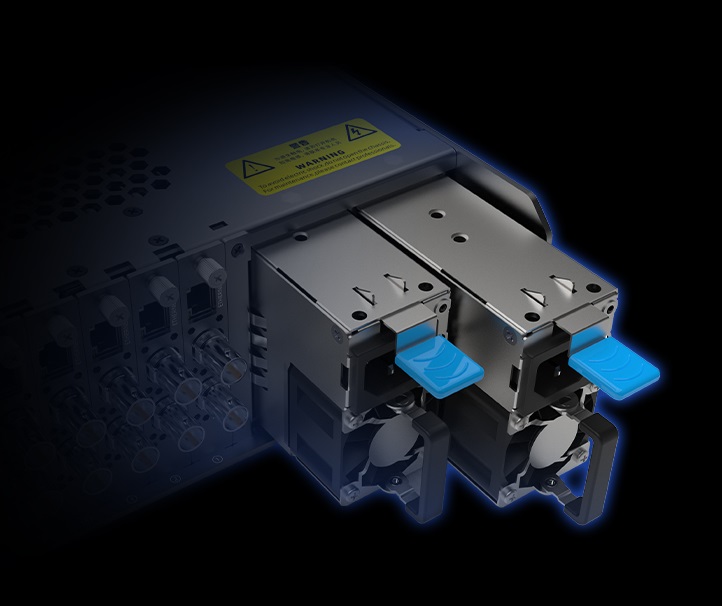

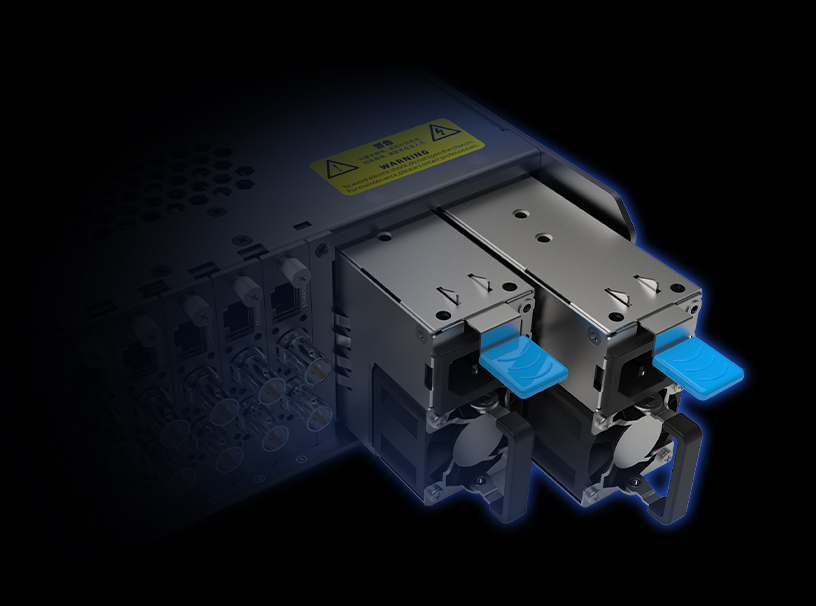

Dual-Redundant Power Supplies: It features dual-redundant, hot-swappable 500W power supplies, ensuring uninterrupted operation even in the most demanding conditions.

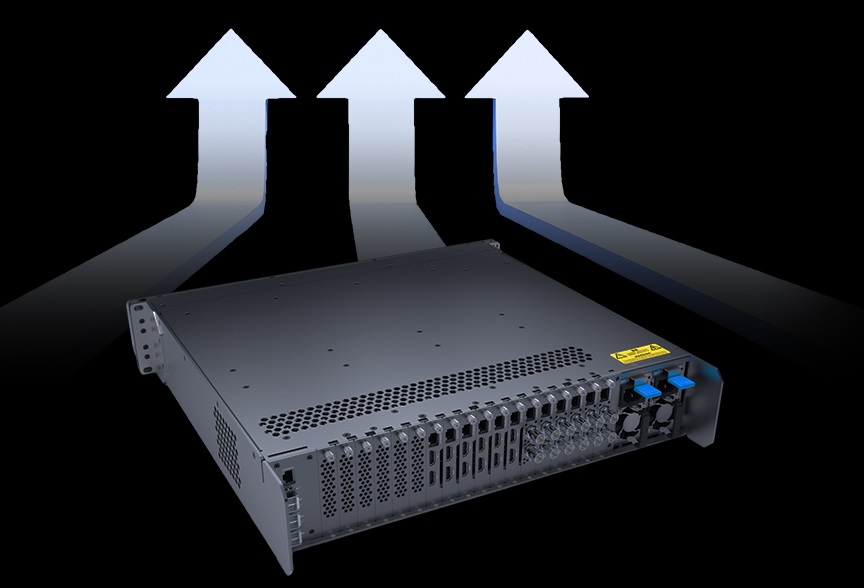

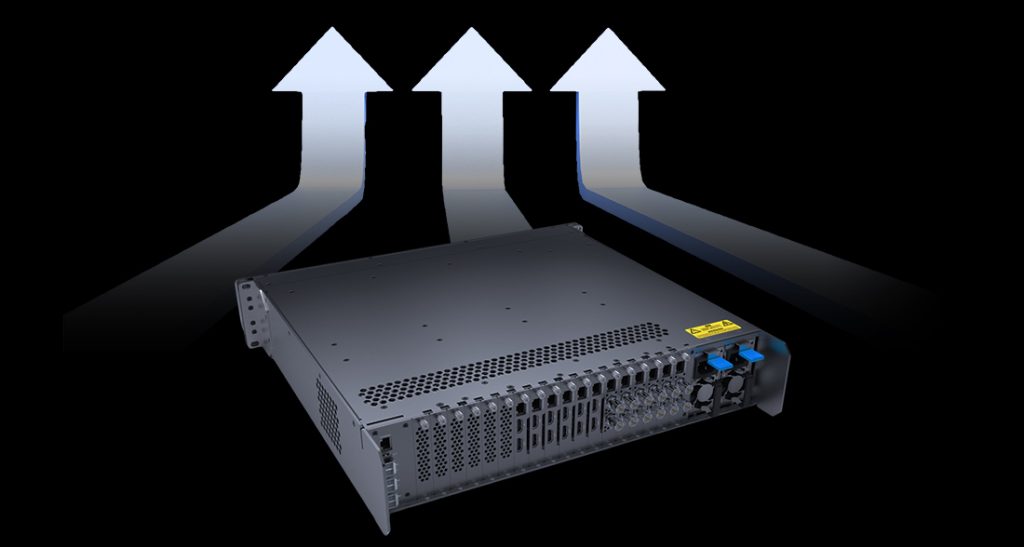

High Durability with Advanced Cooling System: The advanced cooling system is designed to maintain optimal operating temperatures for all module cards, ensuring consistent performance over extended periods. This high level of quality ensures the RF02 can handle the toughest professional media environments, offering peace of mind that your operations will continue smoothly without unexpected interruptions

User-Friendly Interface

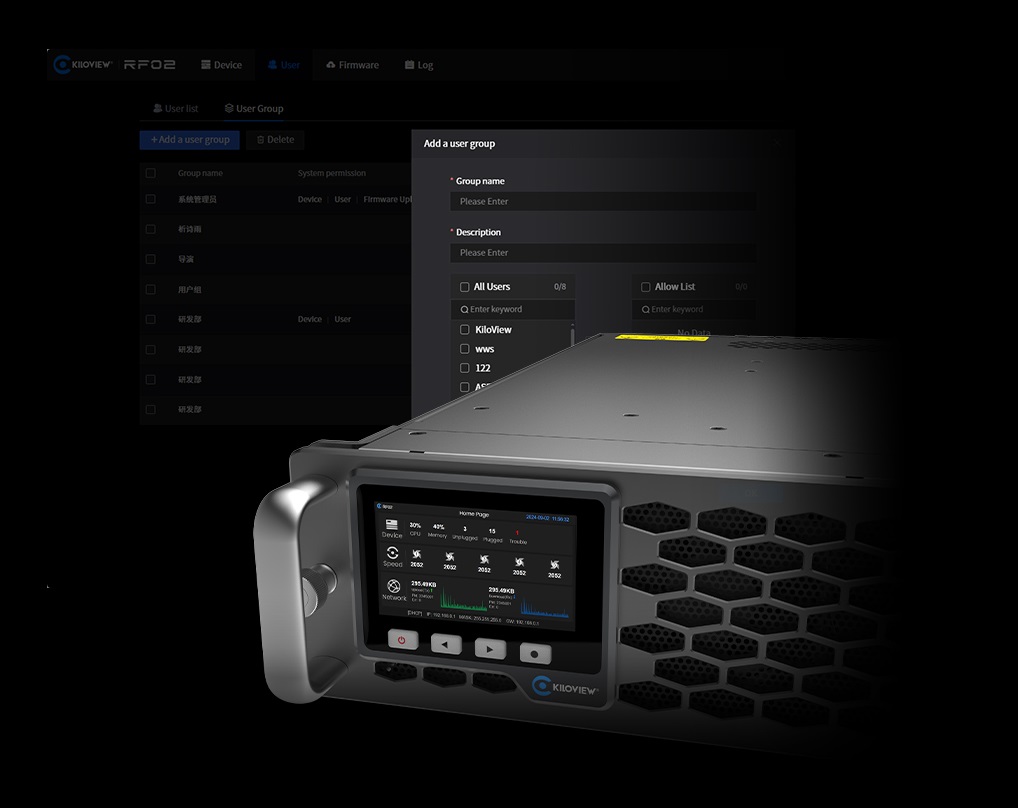

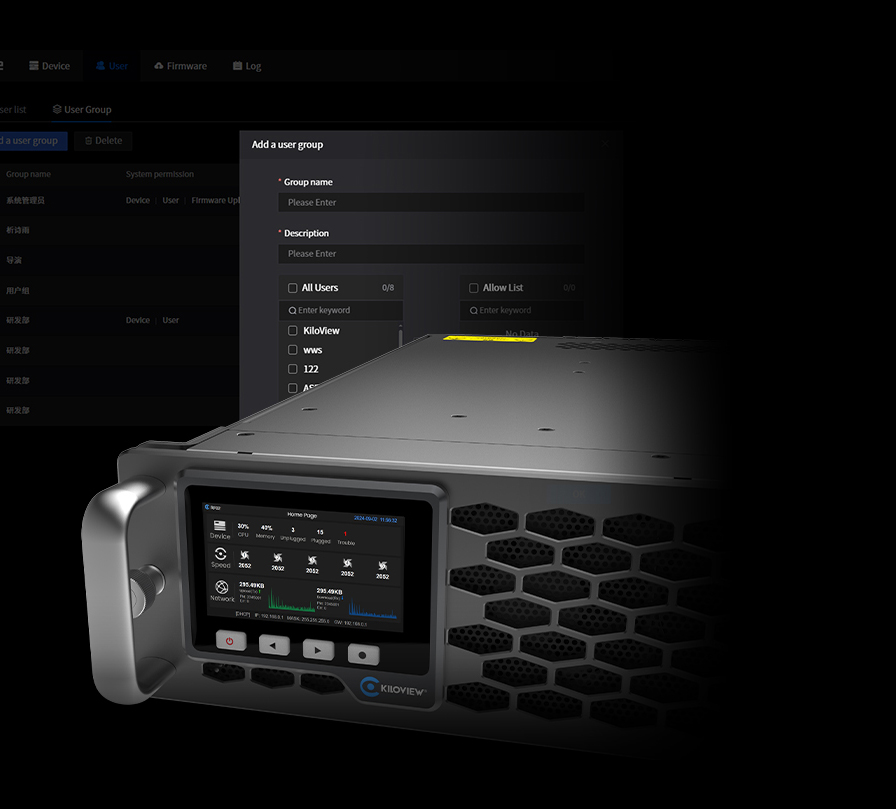

3.0-inch Color LCD Panel: RF02 has a 3.0-inch color LCD panel on the front and intuitive buttons for quick status monitoring and configuration. The display provides real-time information on the operation of each module card, enabling efficient management and direct troubleshooting.

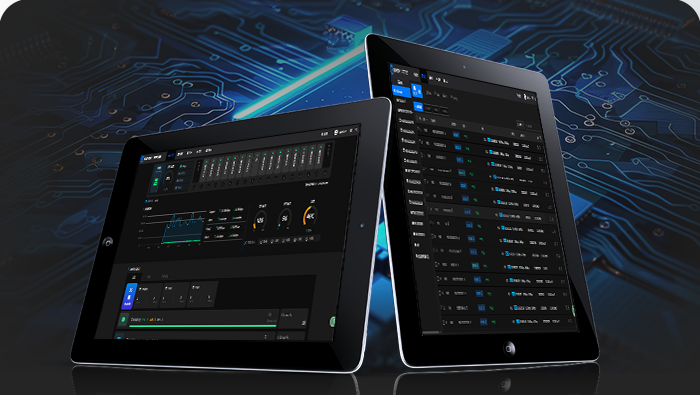

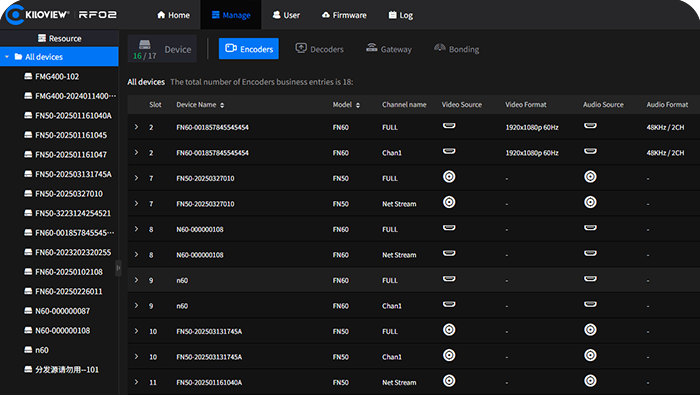

Web-Based Remote Management: RF02 supports a web-based management interface accessible via HTTP/HTTPS. This interface allows for remote management, including device configuration, status monitoring, and firmware upgrades, all from a user-friendly web UI. The platform also supports integration with popular web browsers like Microsoft Edge, Firefox, Chrome, Safari, and Opera, ensuring broad compatibility and ease of use.
Easy Device Grouping and Permission Management: RF02 provides a flexible device grouping and advanced permission setting options, providing secure and convenient operations across diverse workflows.

Professional Integration Capabilities

Extensive API Support: RF02 offers extensive API support for advanced users and developers, allowing for deeper integration into custom workflows. The HTTP/HTTPS APIs enable remote programmability and control, making it easy to automate tasks and integrate the RF02 with other systems.
Custom Automation: This API accessibility ensures that RF02 can be tailored to meet specific operational needs, providing a level of customization that sets it apart from other solutions on the market. Whether you need to interface with existing software, create custom automation scripts, or integrate with third-party systems, the RF02 provides the tools necessary to achieve professional-grade results.

Optional Module Cards

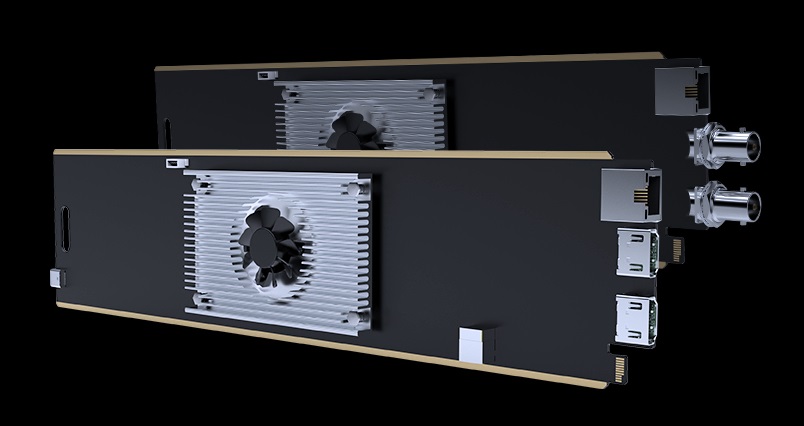

Powerful Encoding & Decoding Cards

All-in-One Encoding & Decoding: Our integrated module cards (FN-60/ FN-50) support H.264/ H.265/ NDI SpeedHQ, delivering UHD4Kp60 with YCbCr 4:2:2/ 10-bit color format with immersive visuals in every frame.

* FN-60：4K P60 HDMI Encoding/Decoding Service Card

FN-50: 12G-SDI Encoding/Decoding Service Card

All-in-one Media Gateway Card (FMG-400)

Flexible Format Conversion : FMG-400 supports seamless conversion between video formats such as H.264, H.265, and SpeedHQ (NDI codec), as well as audio formats including NDI Audio, AAC-LC, and G.711.
Broad Protocol Compatibility: FMG-400 effortlessly bridges protocols like NDI High Bandwidth, NDI HX, NDI HX3, SRT, RTSP, RTMP, HLS, UDP, and RTP for versatile media streaming and integration.

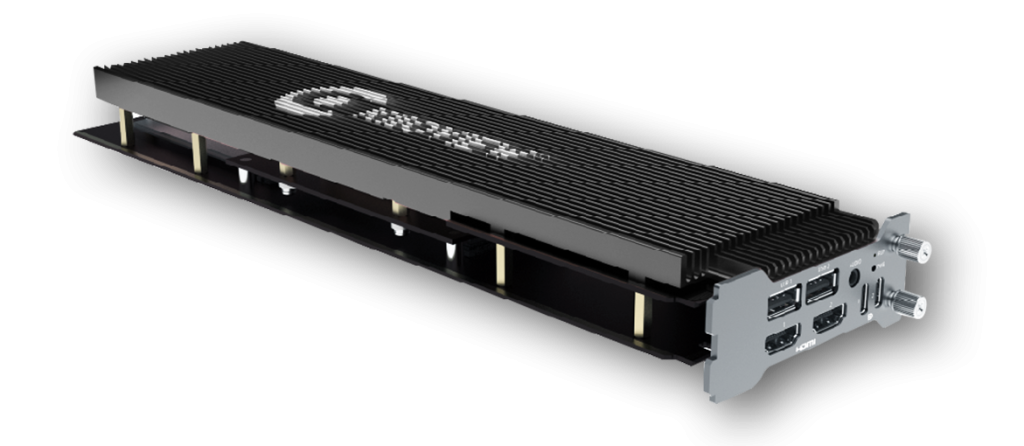

FXC-A8600 Compute Card

FXC-A8600 Compute Card is a high-performance computing module specificaly designed for Cradle Series RF02. Powered by AMD’s industrial-grade processor, it provides comprehensive high-speed interfaces and supports fiexible installation of windows or linux OS licensing. Users can freely deploy broadcasting, producion, or streaming sofware without requiring additional PCs.

Paired with Kiloview’s software ecosystem, it enables recording, monitoring, and communication—making RF02 a one-stop AV-over-IP solution.

NDI Multiview Card (FMV-400)

Designed for high-performance multiview monitoring, FMV-400 delivers razor-sharp previews frame by frame. Whether it’s live production, post-editing, or multi-source monitoring, it handles it all with ease and precision.

*Coming soon — stay tuned for the latest updates.

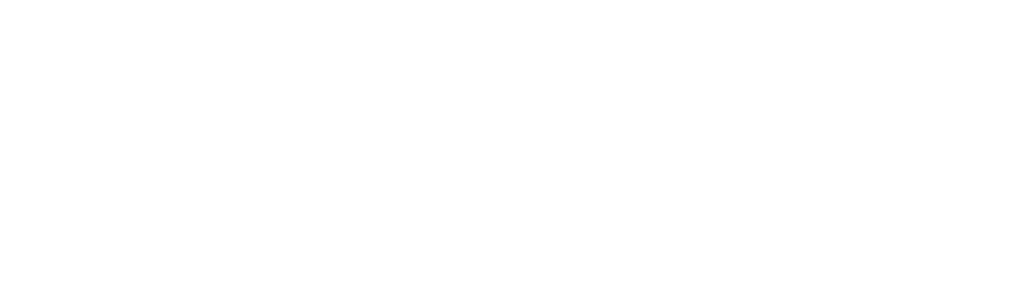

Decoding/Multiview Multi-functional Card (FD-400)

Engineered for complicated media workflows, FD-400 supports multi-stream decoding across a wide range of protocols—including SRT, RTMP, HLS, TS, RTP, and RTSP—covering both H.264 and H.265 formats. It’s also fully compatible with NDI HX, NDI HX3, and NDI High Bandwidth. With customizable multiview layouts, the FD-400 adapts seamlessly to diverse, high-demand scenarios.

*Coming soon — stay tuned for updates.

RF02 Tech Specs

Main Controller Module
Processor	8-core ARM64 high-performance processor (Cortex) A73@1.8GHz
Memory	12GB DDR4
Storage	128GB EMMC
Operating System /Software	Linux 5.10/KiloLink Server Pro RF version
Management and Control	Web/ HTTP API

Network Switch Module
Service Cards Connection	18 x 1Gbps/2.5Gbps Adaptive Ethernet (Slot1/2 can support up to 10Gbps)
External Connection	3 x 10Gbps SFP+ Optical Ports (IEEE 802.3ae) 1 x 10Gbps RJ45 Ethernet port
Type	Three-layer managment switch/VLAN support
Switching Capacity	120Gbps

Overall Chassis
Display	3-inch LCD color display (non-touchable)
Buttons	4 (Power/Flip left/Flip right/Select)
External Connection	3 x 10Gbps SFP+ Optical Ports
External Connection	1 x 10Gbps RJ45 Ethernet port
Heat dissipation	Self-Adjust heat dissipation/ Auto-temp control
Power supply	Dual hot-swappable modular power supplies with redundant backup (configurable to single power mode) Single module specifications: AC 100-240V, 7A(Max), 60/50Hz, 500W Max

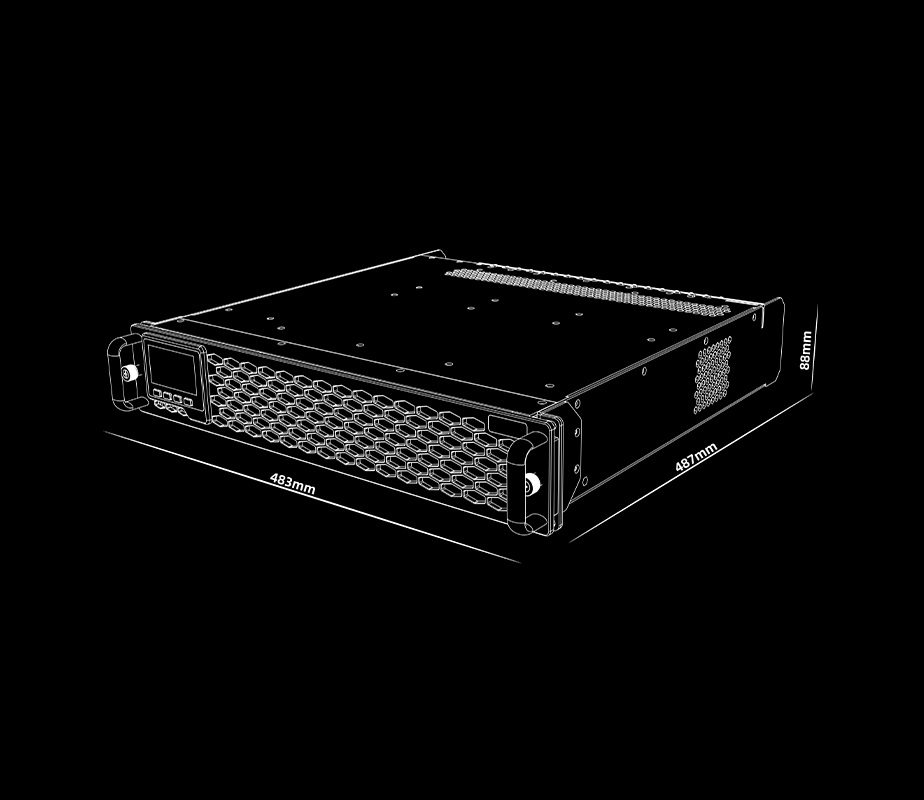

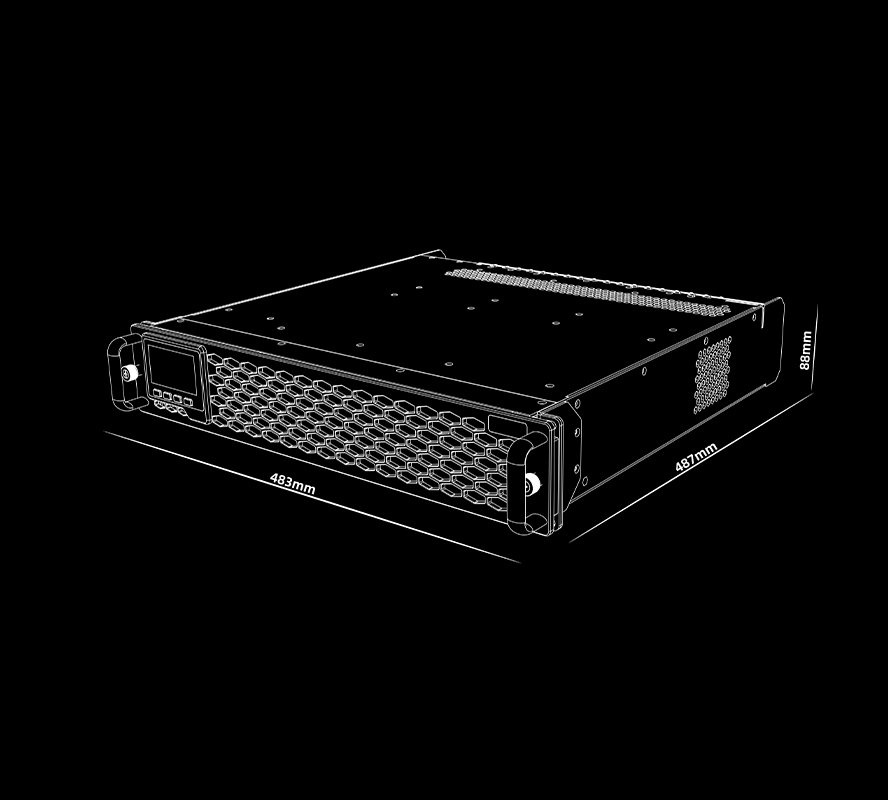

Dimensions	483mm x 487mm x 88 mm (2RU)
Working Temperature	-10°C to 50°C

Card Functions & Expansion Capabilities
FN50/FN-60	Encoding/Decoding Performance	Up to 4K video encoding and decoding
	NDI Support	Supports NDI High Bandwidth Supports NDI HX and NDI HX3 Supports NDI 6
	Protocol Compatibility	Supports SRT/RTMP/RTSP/HLS/UDP/RTP protocols
	Image quality	Supports 4:2:2 10bit HDR
	Internet transmission	NDI Bridge Utility
FMG-400	Encoding/Decoding Performance	Supports 1-channel 4K P60 or 4-channel 1080P60 video Cross conversion between H.264, H.265 and SpeedHQ Supports 4K and multi-channel 1080P playback
	Audio Processing Capability	Cross conversion between PCM, AAC, and G.711
	Streaming Protocol Support	Supports NDI HB/NDI HX/SRT/RTMP/RTSP/RTP/UDP/HLS Supports more than 50 concurrent connections
	Stream Transmission	Supports dual-stream transmission modes (push/pull) and allows unicast (point-to-point) and multicast (one-to-many) Supports single signal source input with multiple protocol outputs, or multiple outputs within the same protocol (*Note: The final capabilities will be determined by the final official release.)
