Kiloview LinkDeck

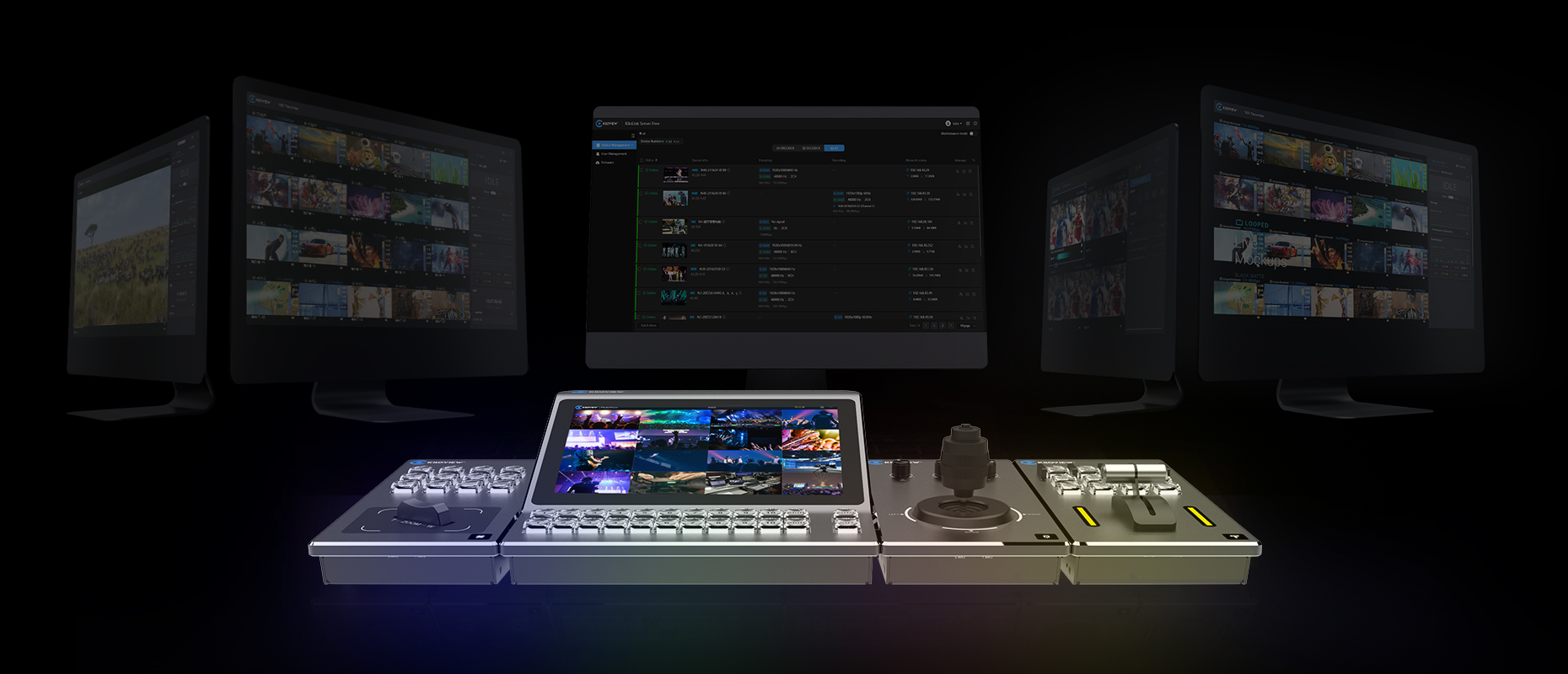

LinkDeck Control Panel, Your Personal Workbench

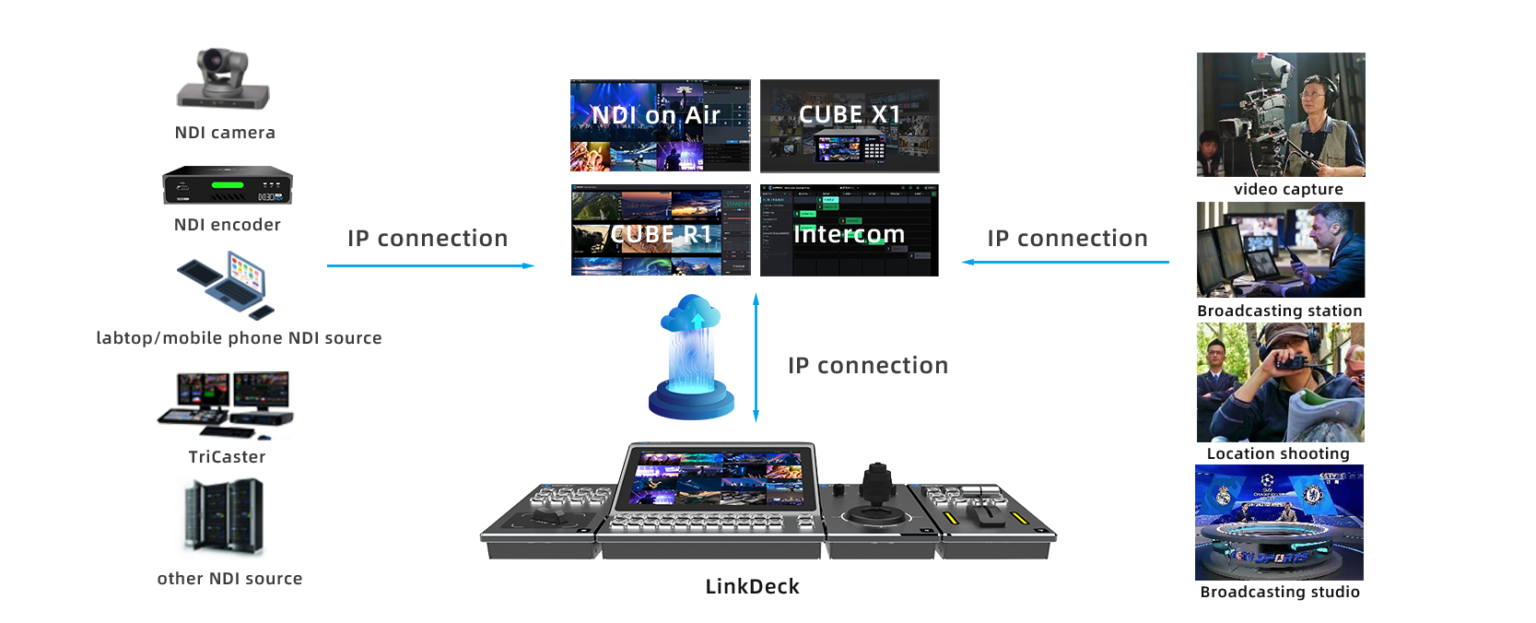

The Kiloview LinkDeck Series consists of four unique design decks including Panel Deck, Take Deck, Zoom deck and the PTZ Deck, and can control all aspects of Kiloview hardware and software based on RTC technology. LinkDeck enables users to manage the whole Kiloview ecosystem including NDI ONAIR / NDI CORE*/ NDI RECORDER* / NDI Encoder / NDI Decoder / Multiview / KiloLink Server*.

By developing a 3rd-party plug-in based on Python, Linkdeck even allows interaction with systems like TriCaster and vMix.

One Cable Is All You Need

LinkDeck is an IP-based solution that delivers safe and stable transmission. All the control and management for the system is controlled by one PoE cable.

Modular Design Brings Huge Scalability

LinkDeck consists of four unique design decks including Panel Deck, Take Deck, Zoom deck and the PTZ Deck. Each deck can be combined to your own specification to create an exclusive workbench with fully customised content. This unique design also offers easy assembly and installation for an optimised user experience.

*: KIS is undergoing the compatibility testing and can be purchased separately in the future. We’ll keep you updated when we have the latest news.

Panel Deck - All Under Control

The Panel Deck, equipped with a 10.1” touch screen and a bi-color LED keyboard, provides the easy operation and an intuitive user experience. The 10.1” screen allows you to customize whatever product you want to control.

Both soft keys and physical keys control all aspects of your workflow, with DC and PoE providing the power source to your entire suite of Decks.

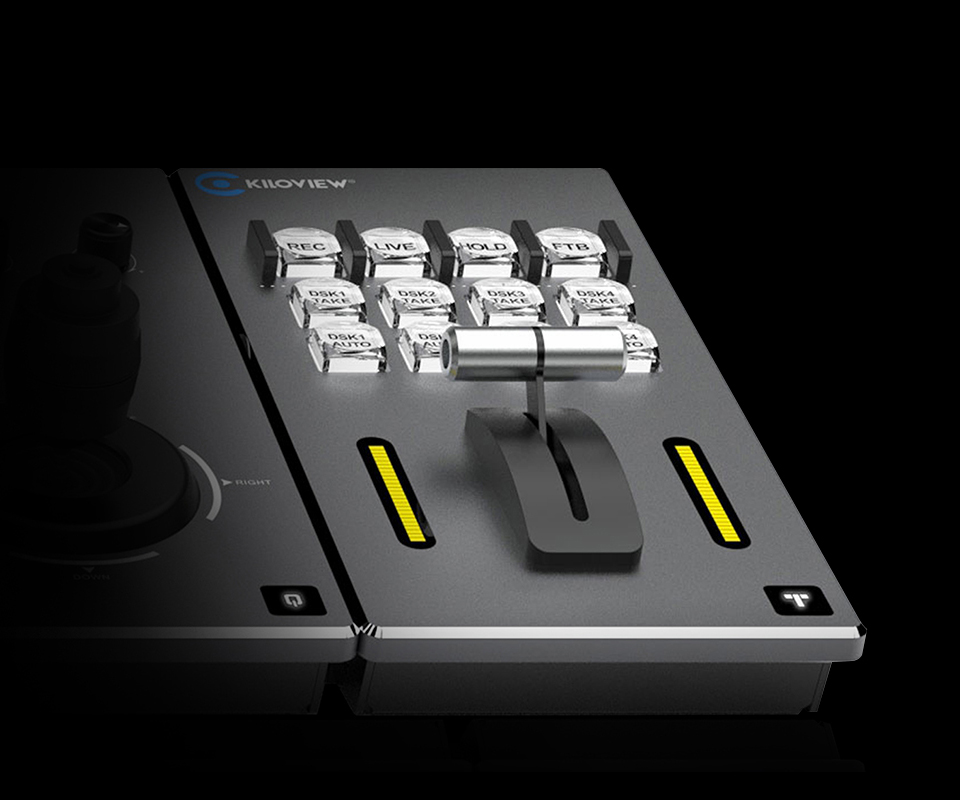

Easy TAKING - TAKE Deck

Take Deck helps you to switch like a pro with a “T” stick and dual LED displays. 12 buttons are available to control Switching / FTB* / Recording* / Live streaming / Lock screen with one single press, making every step of the process easy to operate.

*Coming soon with free future update.

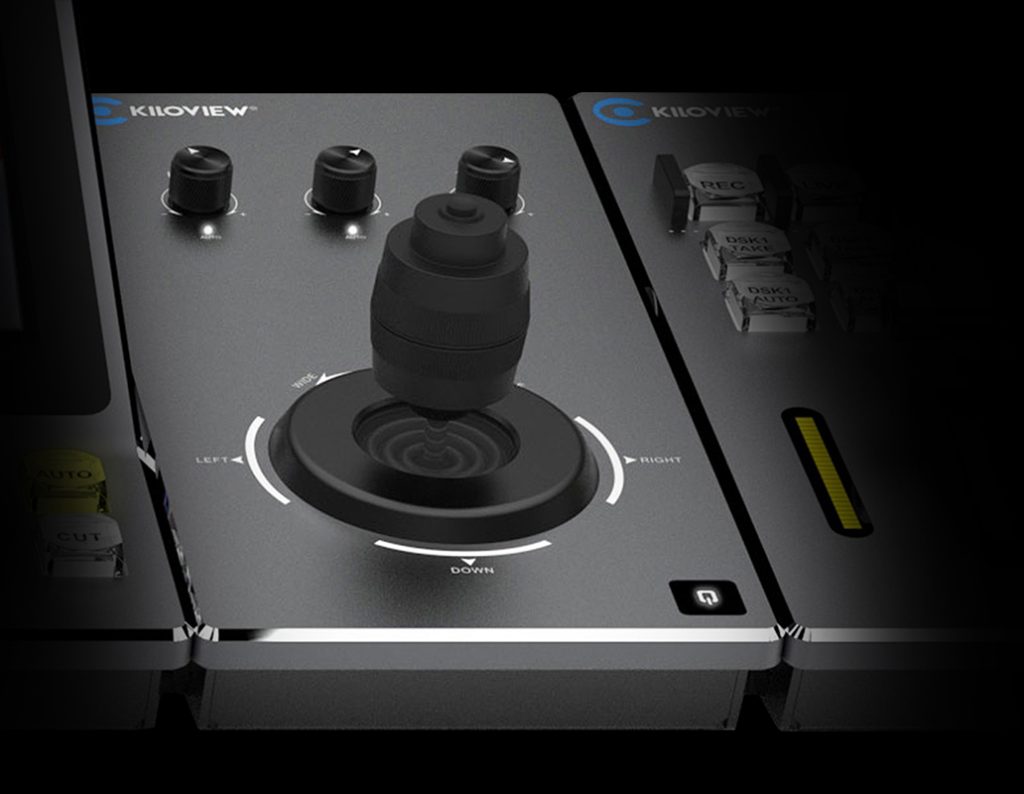

Pro PTZ Control - PTZ Deck

The PTZ Deck offers single handed control of all your PTZ cameras, with the simple movement of the joystick and switches to adjust focus, aperture and white balance.

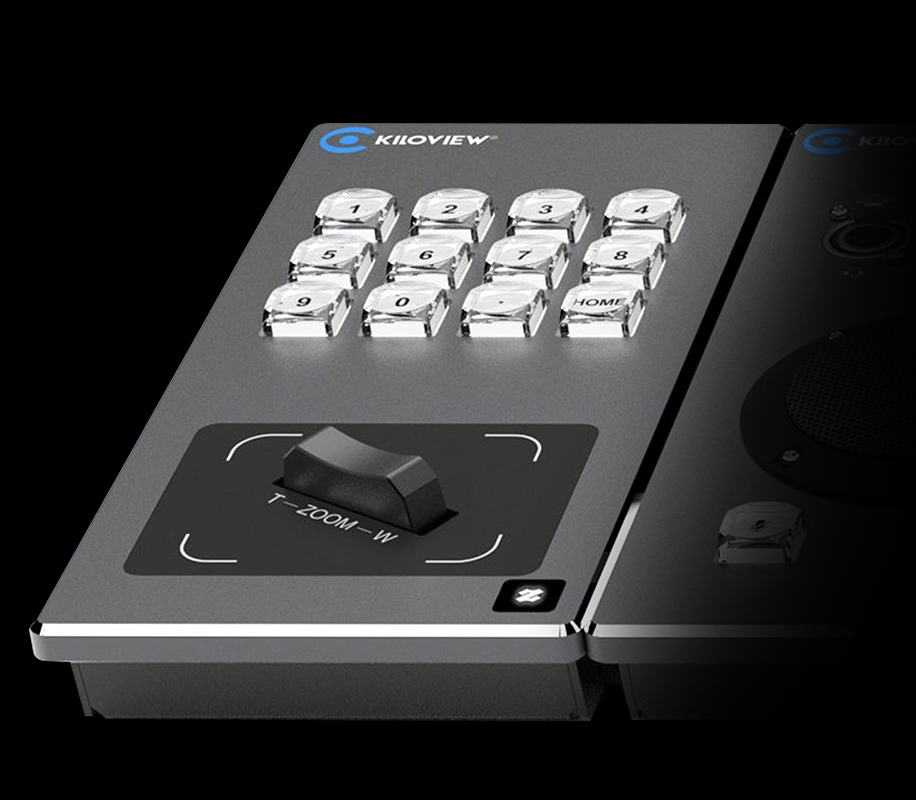

ZOOM it! - ZOOM Deck

With Zoom Deck’s rocker, you can simply zoom in / out whenever you want. It also has 11 soft buttons for all your personal customization.

Material

Panel Deck is made of robust aircraft-grade materials and designed for bringing the studio experience to you, wherever you are with its own whole set of pro-level joystick/buttons/switches/selectors and ports.

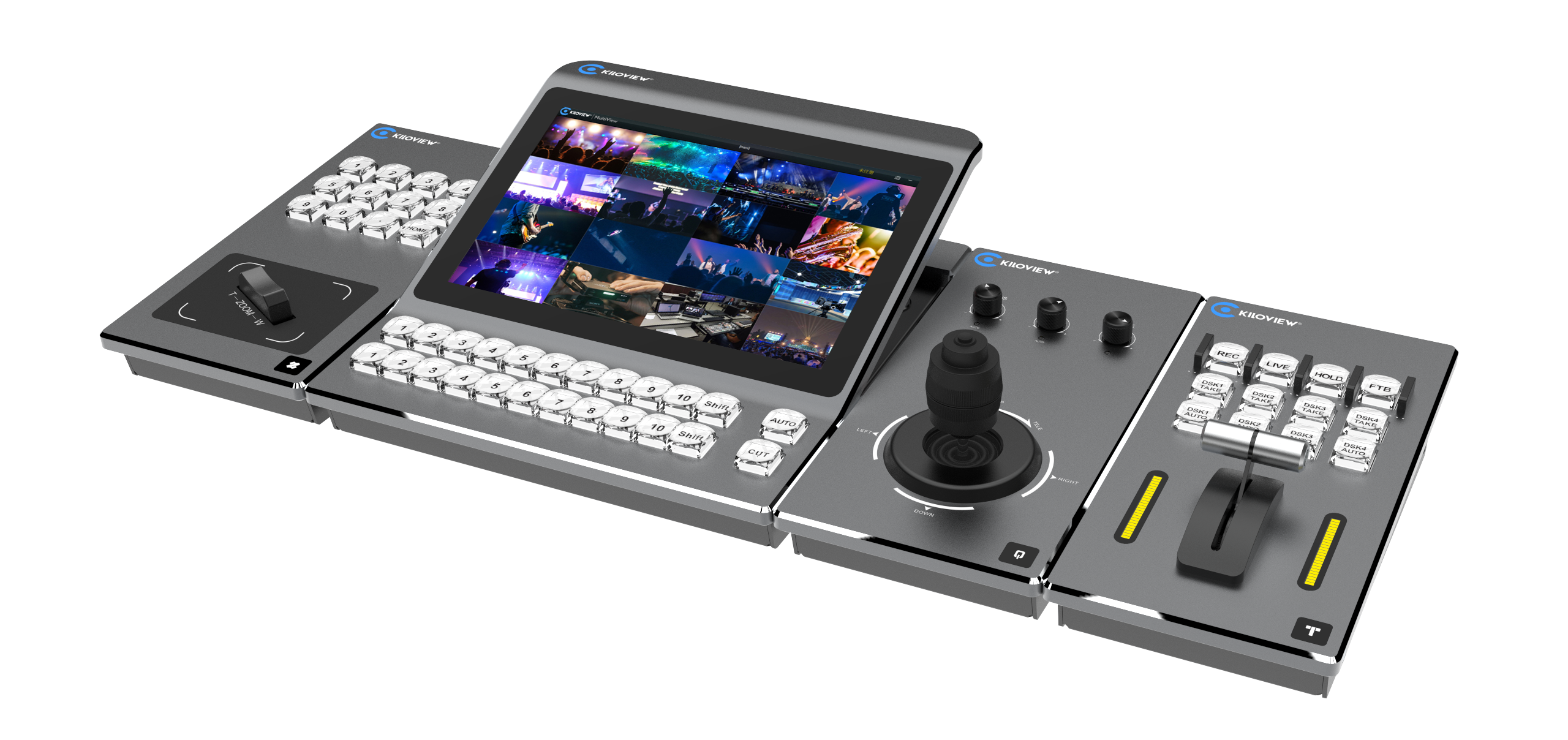

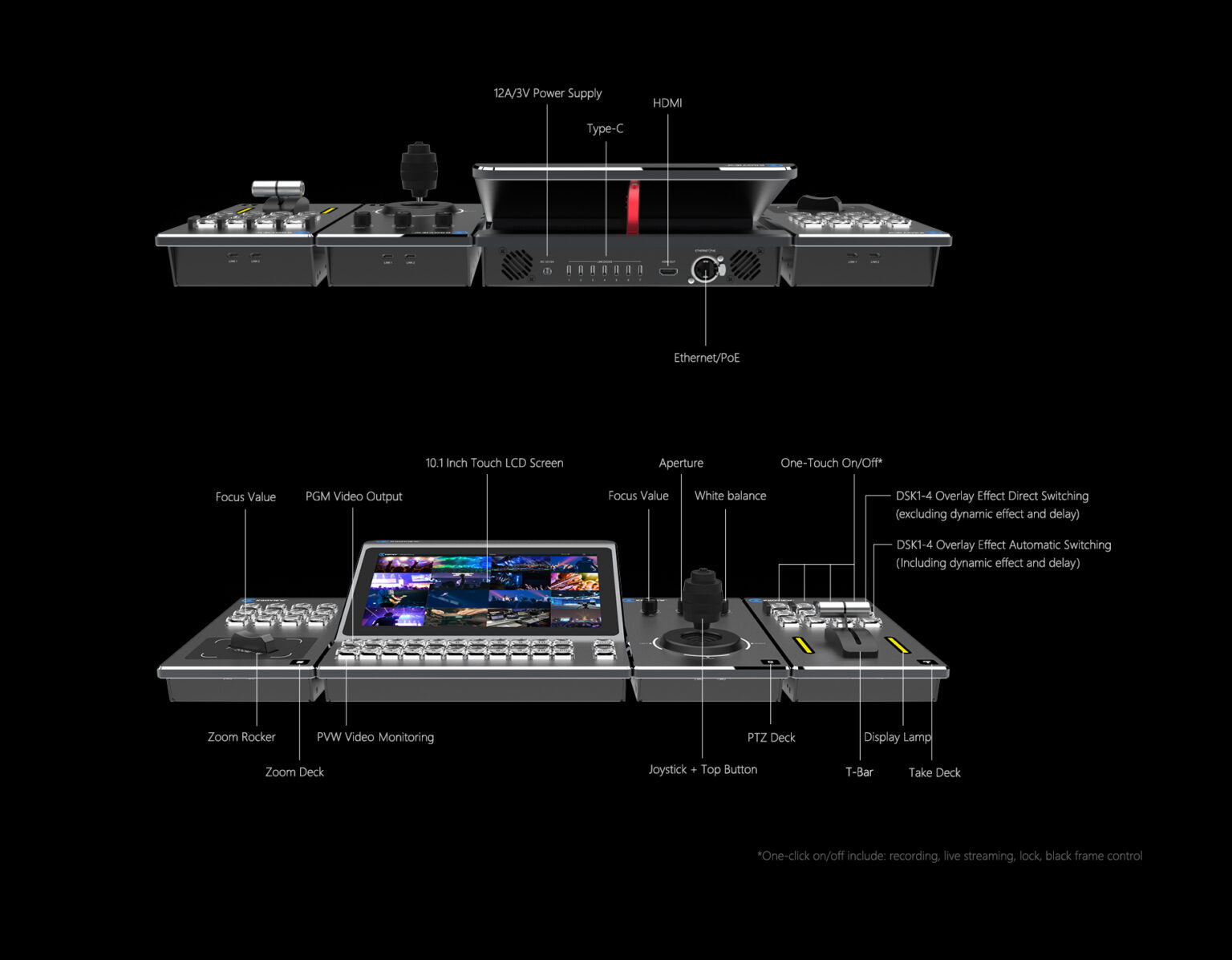

LinkDeck Appearance

Applications

Flexible to apply to different scenes including Studio production, Production truck, Concert, Live streaming, Live event, Video conference, etc.

IP TV Production

Reality Show

Remote Video Conference

Live Broadcast

Tec Specs

Model No.	Tech Specs
Panel Deck DP-01	Display	10.1″ multi touch LCD screen
	Resolution	1920 x 1200
	Keyboard	24 keys（Bi-color tally）
	CPU	8-core CPU
	Memory	2GB
	Storage	16GB
	Video Output	1 x HDMI
	Internet	1GbE port with PoE
	Power Supply	DC5.5/2.5 12V
	Output Resolutions	Up to 1080P60
	Key	24, user-defined keys
	USB Port	7×Type-C 2.0
	DC Port	Single DC5.5/2.1
	Weight	6.65lb
	Dimension	285.33260.00110.10mm(11.2″x10.2″x4.3″）
	Operating Temperature	-20°C~45°C
PTZ Deck DQ-01	USB	2 * USB Type -C 2.0
	Key	1
	Control Knob	3
	Joystick	1
	Tally	3（2 in white，1 in RGB based on settings)
	Dimension	260.00130.00107.45mm(10.2″x5.1″x4.2″）
	Weight	3.30lb
Zoom Deck DZ-01	Keys	13
	ZOOM Rocker	1
	USB	2 * Type-C 2.0
	Dimension	260.00130.0053.68mm (10.2″x5.1″x2.1″)
	Weight	3.04lb
Take Deck DT-01	USB	2 * Type-C 2.0
	Keys	13
	T Stick	1
	Dimension	260.00130.0074.00mm(10.2″x5.1″x2.9″)
	Weight	3.22lb

Quick Comparison of our NDI Series

Product Type	Product No.	NDI Codec Capability	Video I/O Connectivity	Resolution	Notes
NDI Bi-Directional Converter	N6	NDI High Bandwidth/NDI HX	HDMI	1080P60
	N5	NDI High Bandwidth/NDI HX	3G-SDI	1080P60
	N50	NDI High Bandwidth/NDI HX	12G-SDI	4KP60
	N60	NDI High Bandwidth/NDI HX	HDMI	4KP60	SRT Support
	N3	NDI High Bandwidth	3G-SDI	1080P60
	N30	NDI High Bandwidth	12G-SDI	4KP60
	N40/N40 Plus	NDI High Bandwidth	HDMI	4KP60
NDI Wireless Encoder	N1	NDI HX	SDI	1080P60	WiFi supported, Battery Builld-in
NDI Wireless Encoder	N2	NDI HX	HDMI	1080P60	WiFi supported, Battery Builld-in
NDI Encoder	E3	NDI HX	SDI+HDMI	4KP30 in HDMI, 1080P60 in SDI
	U40	NDI High Bandwidth/NDI HX	HDMI	4KP60
	E1	NDI HX	SDI	1080P60
	E2	NDI HX	HDMI	1080P60
NDI Decoder	D350	NDI High Bandwidth/NDI HX	SDI+HDMI	4KP60
NDI Decoder	D260	NDI HX	SDI+HDMI	1080P60
