Enhanced One-Stop Shop to access the World of NDI
Kiloview N5/N6 is a bi-directional NDI converter that supports 3G-SDI/HDMI input (encoder) and loop output(decoder). With the support of both NDI high bandwidth and NDI HX2/3, N5/N6 is capable of processing all NDI sources from any camera, software or device.
Featured with powerful functions such as PoE, LCD display with big-sized tally, PTZ control, 3.5mm audio line in/out, multi-channel audio encoding, intercom and centralized management, N5/N6 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.
N5: 3G-SDI I/O
N6: 1080P HDMI I/O
Kiloview N5/N6 supports encoding/decoding of NDI High Bandwidth and NDI HX 2/3. Both NDI encoding and decoding can work within this compact device. Switch the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.
In encoding mode, N5/N6 can encode 3G-SDI/HDMI signal into an NDI High Bandwidth/NDI HX 2/3 video stream.
In decoding mode, N5/N6 will automatically adapt the NDI High Bandwidth/NDI HX 2/3 and output through 3G-SDI/HDMI.
Kiloview N5/N6 supports 3.5mm analog audio line in/out or embedded audio. Max 4 CH audio encoding will be supported.
It also supports voice intercom with Kiloview Intercom server.

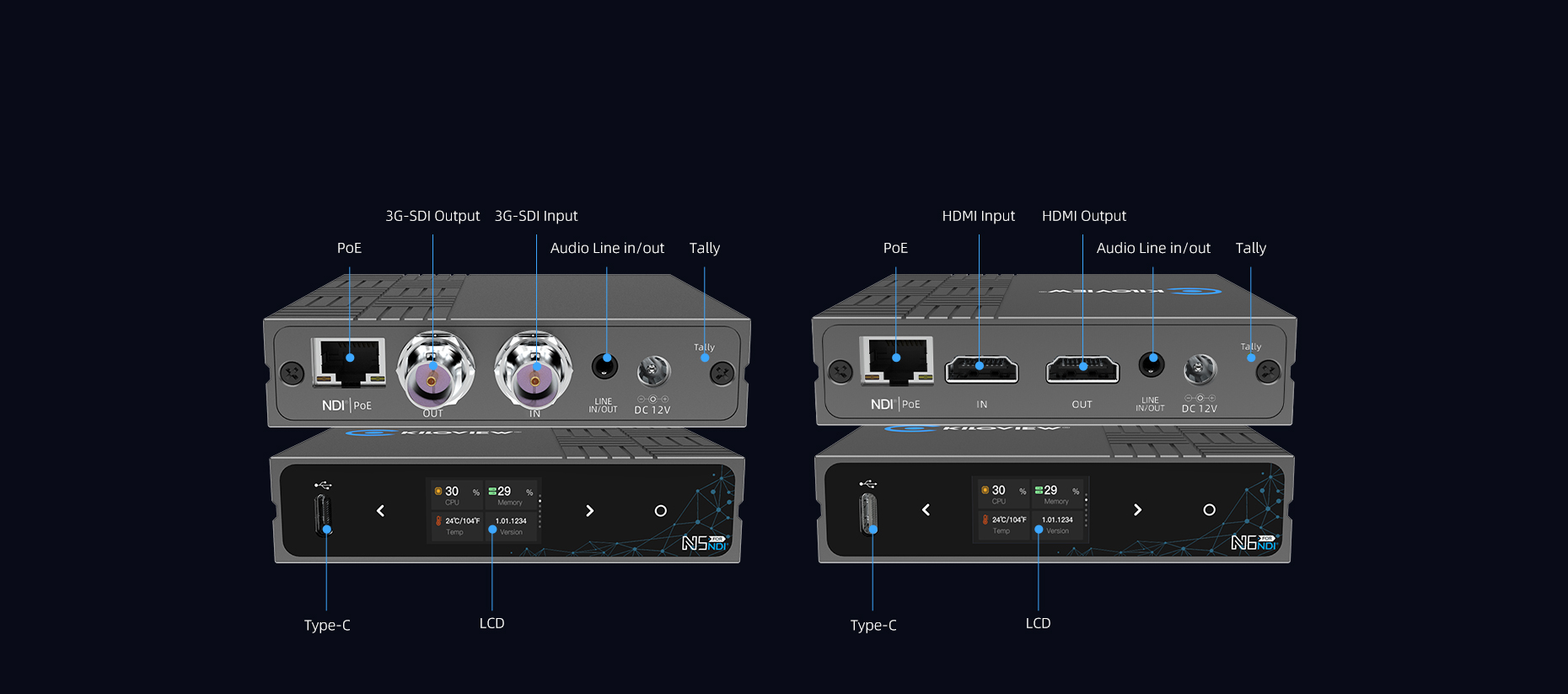

N5/N6 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time.
Kiloview N5/N6 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP with different protocols, no extra cable required.

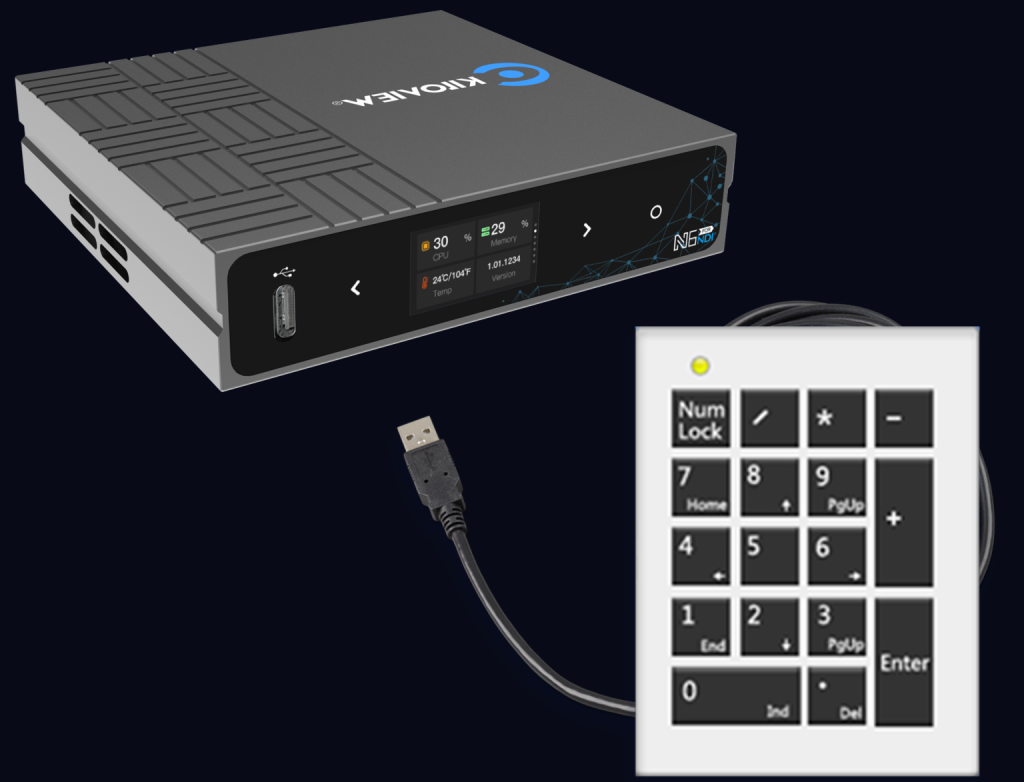

In decoder mode, you can preset the NDI sources from numbers 0~9. Connect the decoder with a USB keypad, you can easily choose the output source with a single press.
Or you can even use the USB keypad to control a PTZ camera-the cheapest PTZ keyboard you can get.

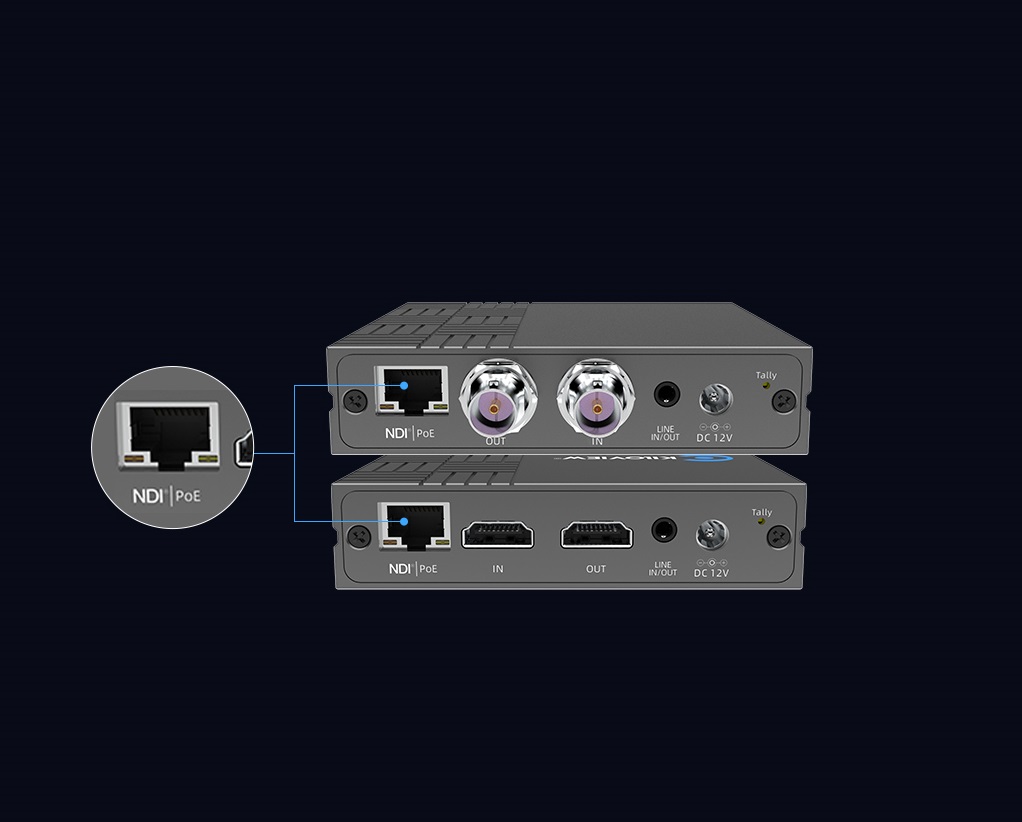

With PoE, the N5/N6 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or a camera battery.
| Model | N5/N6 |
|---|---|
| Video Input | N5: 1*3G-SDI; N6: 1*HDMI |
| Video Output | N5: 1*3G-SDI ( Loop-out ); N6: 1*HDMI ( Loop-out ) |
| Audio Ports | 1*3.5mm Line I/O |
| Network Connections | 1*RJ45 1000Mbps Ethernet port (with PoE) |
| Video resolution | Encoding&Decoding: Up to 1080p60 (Please refer to datasheet for details) |
| NDI Codec Features | NDI Highbandwidth: YCbCr 4:2:2 8bit 125Mbps in 1080p60 NDI|HX: YCbCr 4:2:0 8bit 80Mbps in 1080p60 |
| USB Webcam Input | Yes |
| Tally | Yes |
| Power Supply | PoE/DC/D-tap |
| Intercom | *The feature of voice intercom will be supported in the later version. |
| PTZ Control | Yes |
| DHCP | Yes |
| Management | WebUI/KiloLink Server |
| Power Consumption | 6w |
| Operating Temperature | -20~45℃ |
| Storage Temperature | -20~70℃ |
| Size | 100mm*95mm*23 mm |
| Weight | 272g |
| N6 Support Download | Docs & Firmware |
| Product Type | Product No. | NDI Codec Capability | Video I/O Connectivity | Resolution | Notes |
|---|---|---|---|---|---|
| NDI Bi-Directional Converter | N6 | NDI High Bandwidth/NDI HX | HDMI | 1080P60 | |
| N5 | NDI High Bandwidth/NDI HX | 3G-SDI | 1080P60 | ||
| N50 | NDI High Bandwidth/NDI HX | 12G-SDI | 4KP60 | ||
| N60 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | SRT Support | |
| N3 | NDI High Bandwidth | 3G-SDI | 1080P60 | ||
| N30 | NDI High Bandwidth | 12G-SDI | 4KP60 | ||
| N40/N40 Plus | NDI High Bandwidth | HDMI | 4KP60 | ||
| NDI Wireless Encoder | N1 | NDI HX | SDI | 1080P60 | WiFi supported, Battery Builld-in |
| N2 | NDI HX | HDMI | 1080P60 | WiFi supported, Battery Builld-in | |
| NDI Encoder | E3 | NDI HX | SDI+HDMI | 4KP30 in HDMI, 1080P60 in SDI | |
| U40 | NDI High Bandwidth/NDI HX | HDMI | 4KP60 | ||
| E1 | NDI HX | SDI | 1080P60 | ||
| E2 | NDI HX | HDMI | 1080P60 | ||
| NDI Decoder | D350 | NDI High Bandwidth/NDI HX | SDI+HDMI | 4KP60 | |
| D260 | NDI HX | SDI+HDMI | 1080P60 |
