Media Gateway Card

Kiloview Media Gateway Card support dual-channel 4K resolution.

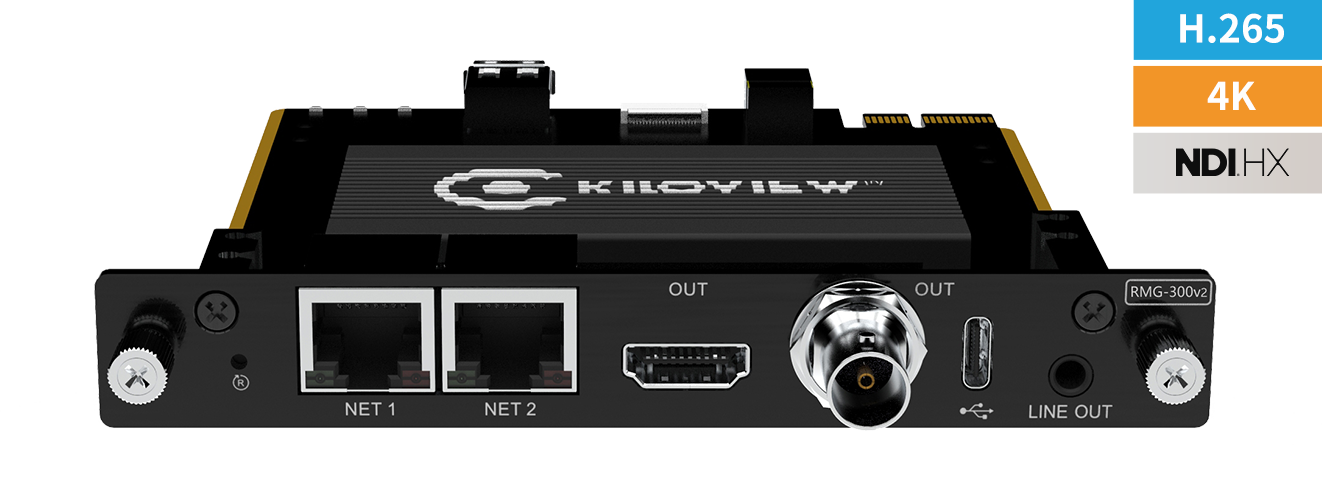

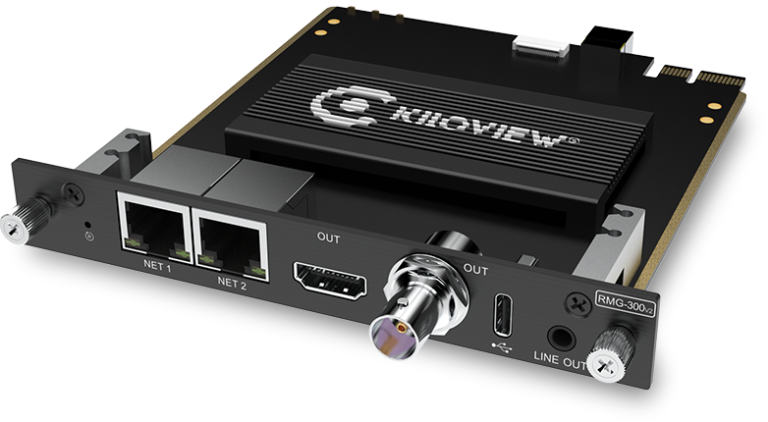

RMG-300 V2
Dual-channel 4K HDMI&3G-SDI Media Gateway Card
Rackmount card version of MG300 V2.

Tech Specs

ModelRMG300 V2
Network2*100M/1000M RJ45 adaptive Ethernets
Decoding output1*SD/HD/3G-SDI, up to 1080P 60Hz
1*HDMI, up to 3840*2160@60Hz
Applicable frameRU01, RU03, RU03S
Analog audio output1*3.5mm Line out
Analog audio input1*3.5mm Line in
USB1*USB 3.0 Type-C
Access protocolNDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize)
Output protocolNDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP
Protocol conversion9 channels1080P video conversion
Streaming distribution50 channels of RTSP, 36 channels of RTMP/SRT
(Not more than 800Mbps)
Streaming distribution capability9 channels*4 channel 1080P
Number of decoding4K 30Hz H.264/H.265: up to 4 simultaneous channels
1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels
1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265：up to 9 channels simultaneously
Video decoding standardH.264, H.265
SDI output format1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60
HDMI output format4K 3840×2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50
Compatible with VESA standard format
Video rate range128Kbps ~ 40Mbps
Audio decodingAAC G.711 (aLaw/uLaw)
Audio rate rangeAAC: 8Kbps ~ 320Kbps G.711: 64Kbps
Decoding delay≤200ms
Split display styleSupport 1/2/3/4/5/6/7/8/9 splitting;
Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding.
Management interfaceWeb
Remote managementSupport
Remote firmware upgradeSupport
Operating temperature-25 ~ 60°C
Dimension & weight140*105*28mm (5.5”*4.1”*1.1”/380g/13.4oz)
Power consumption≤6W
Power supply12V/1A
RemarkNDI|HX means NDI|HX Version 2.0
DownloadsFirmware

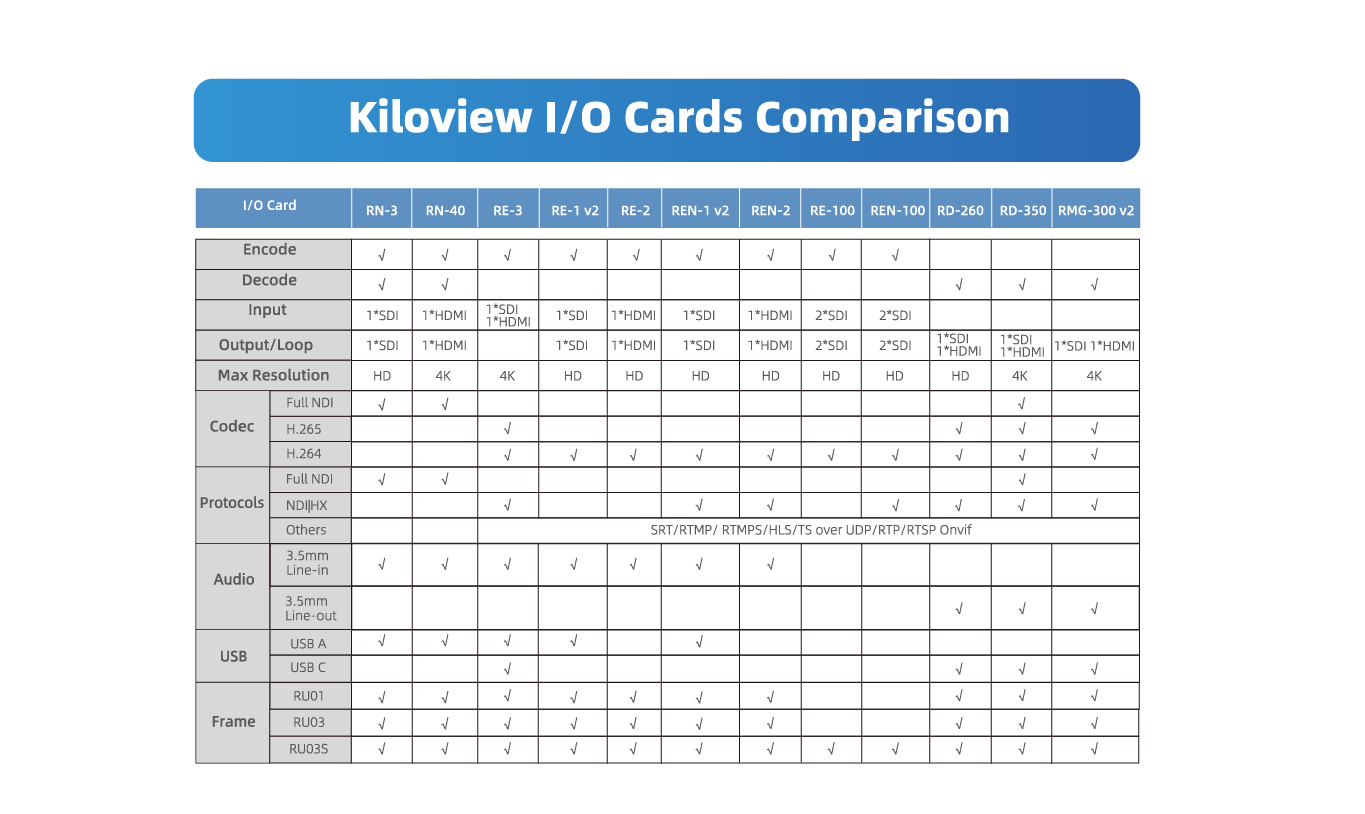

Do you find it hard to pick the right one in our I/O Card Family to fit your workflow?

Here is the chart for your better understanding:
