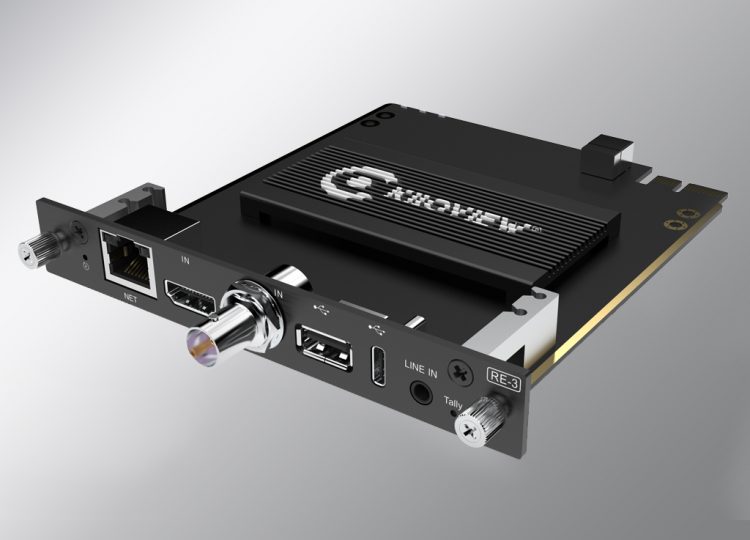

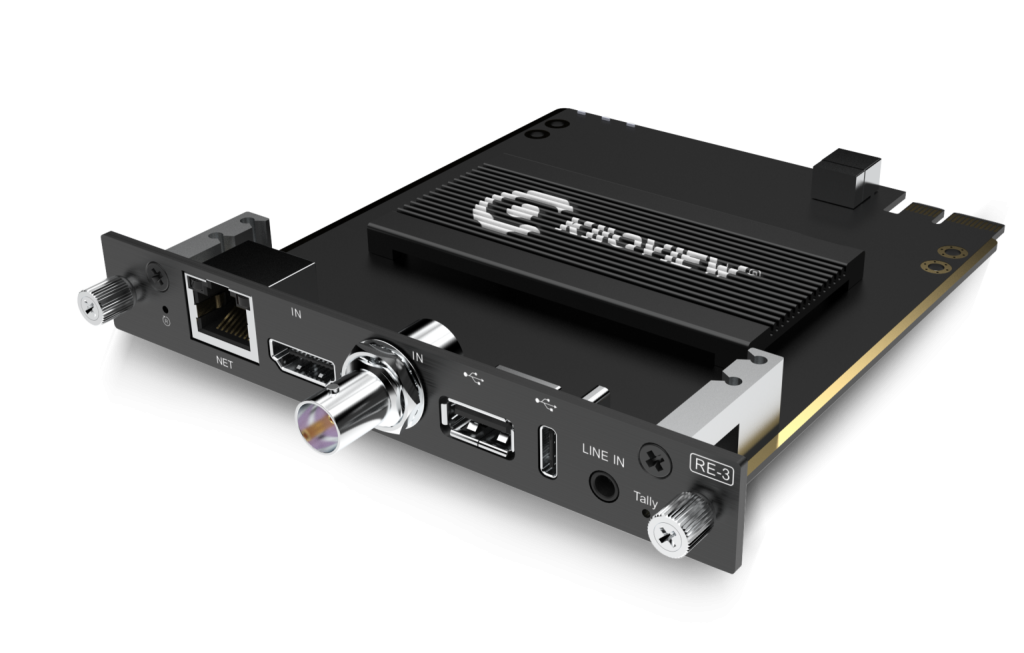

Kiloview RE-3 is the latest version of our Cradle series rackmount encoding card, bringing advanced encoding performance including 4K and dual video input support. With RE-3, you can encode 4K video at up to 30 fps or HD video at up to 60 fps, delivering exceptional quality for any production. The dual-channel video inputs offer unmatched flexibility, allowing for multiple encoding options. Equipped with HEVC technology, RE-3 supports live streaming to up to 4 destinations simultaneously. This makes it a powerful and cost-effective solution for live production, streaming, remote transmission, and post-production across a range of industries.
| Model | RE-3 |
|---|---|
| Input | 1*3G-SDI 1*4K HDMI |
| Loop | / |
| Applicable frame | RU01, RU03, RU03S |
| Analog audio port | 1*3.5mm |
| NDI|HX | NDI|HX2/NDI|HX3 |
| Protocols | NDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP Onvif (Extensible for SIP/GB-T2818) |
| Video codec | H.265(HEVC)/H.264(AVC) |
| Resolution | HDMI: up to 4Kp30 3G-SDI: up to 1080p60 |
| Network | 1*10/100M/1000M RJ45 Ethernet Port |
| Audio encoding | AAC/G.711 |
| Image and text overlay | User-defined text and image overlay |
| Video rotation and cropping | Support |
| Management Portal | Web UI and remote management with KILOVIEW KiloLink Server |
