FXC-A8600 Compute Card

Unmatched Expandability, Infinite Possibilities

No Extra PC Needed – Streamline Your AV-over-IP Workflow with 2U Simplicity

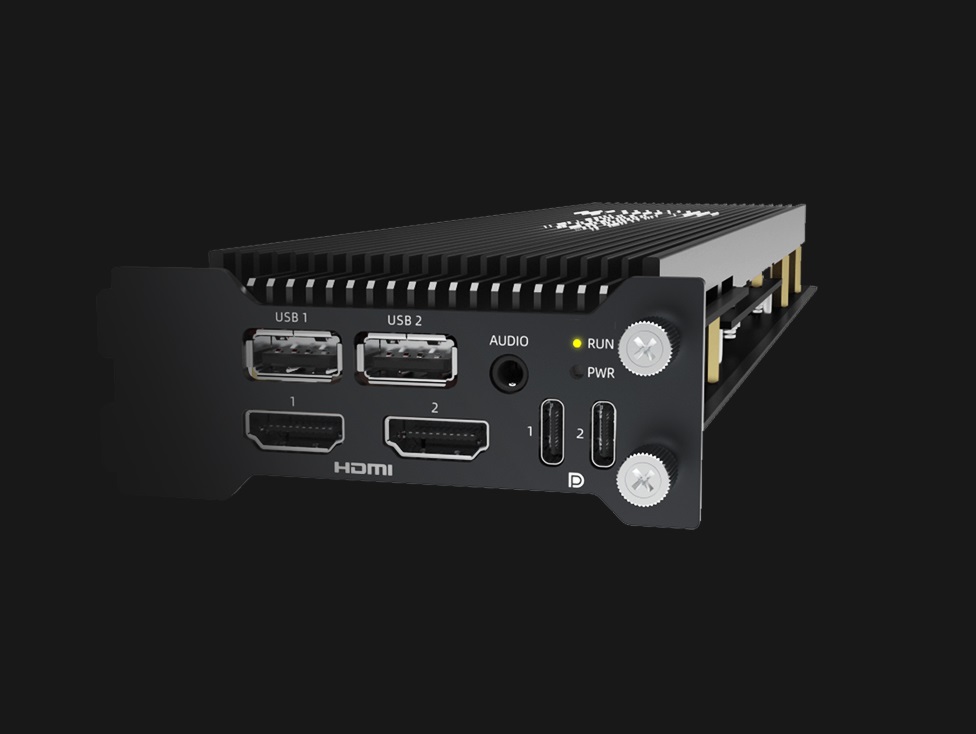

FXC-A8600 Compute Card is a high-performance computing module specifically designed for Cradle Series RF02. Featuring a high-density integrated design and powered by AMD’s industrial-grade processor, it provides comprehensive high-speed interfaces and supports flexible pre-installed Windows or Linux OS licensing. Users can freely deploy broadcasting, production, or streaming software without requiring additional PCs. Integrated with Kiloview’s robust software ecosystem, it enables critical functionalities including recording, monitoring, and real-time communication, positioning the RF02 as the ultimate all-in-one AV-over-IP solution across industries.

Minimal Space, Maximum Performance

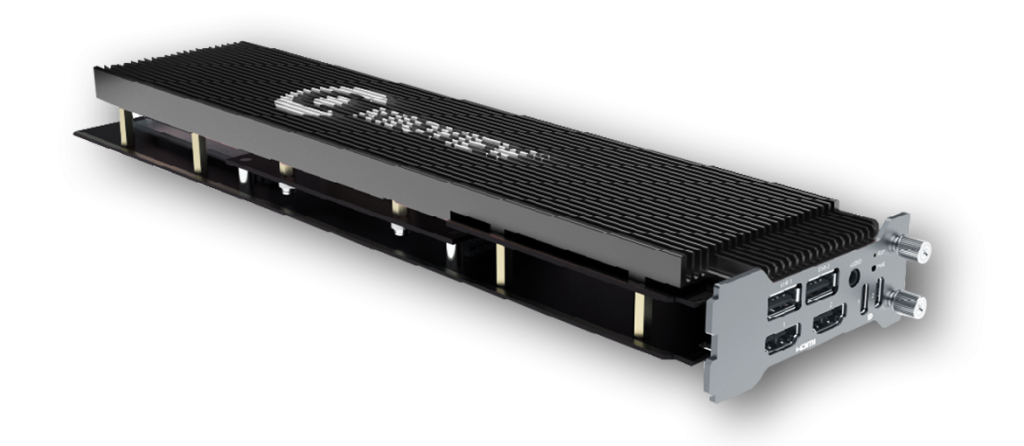

FXC-A8600 Compute Card is equipped with the AMD Ryzen™ Pro 8645HS processor and Radeon™ RDNA3 GPU. With the robust performance of AMD’s industrial-grade processor, the FXC-A8600 Compute Card seamlessly handles simultaneous operations such as multi-screen monitoring, video rendering, and communication dispatch systems. This powerhouse delivers unwavering support for complex multitasking workflows, thereby significantly reducing the number of devices required and optimizing spatial efficiency. The result? A streamlined audio and video processing workflow that achieves a new level of simplicity and efficiency.

Versatile Flexible Expansion

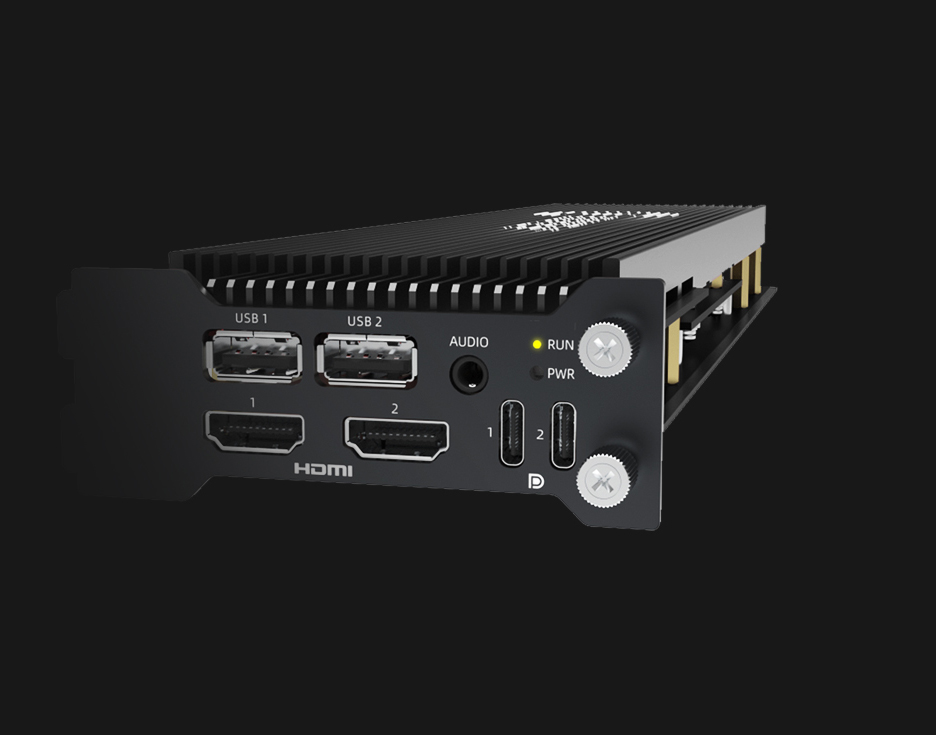

FXC-A8600 Compute Card adopts a core-board and carrier-board separation architecture, achieving a flexible layout of high-speed interfaces including HDMI 2.1 and Type-C within its compact chassis. This architecture provides robust support for diverse scenarios such as 4K signal output and external I/O device connectivity.

Flexible OS Deployment

By choosing the FXC-A8600 computing card, you can install either the Windows or Linux operating system according to your needs, which satisfies various professional software deployment requirements and can also be configured as a standalone media server.

Robust Software Ecosystem

FXC-A8600 Compute Card grants free access to Kiloview’s full software ecosystem – including NDI Recorder, Multiview Pro, and KIS Pro etc. It also delivers seamless integration with industry-leading tools like vMix virtual studios, OBS live streaming, and LAMA medical training platforms.

NDI Recorder

The Best Affordable
NDl Recording System

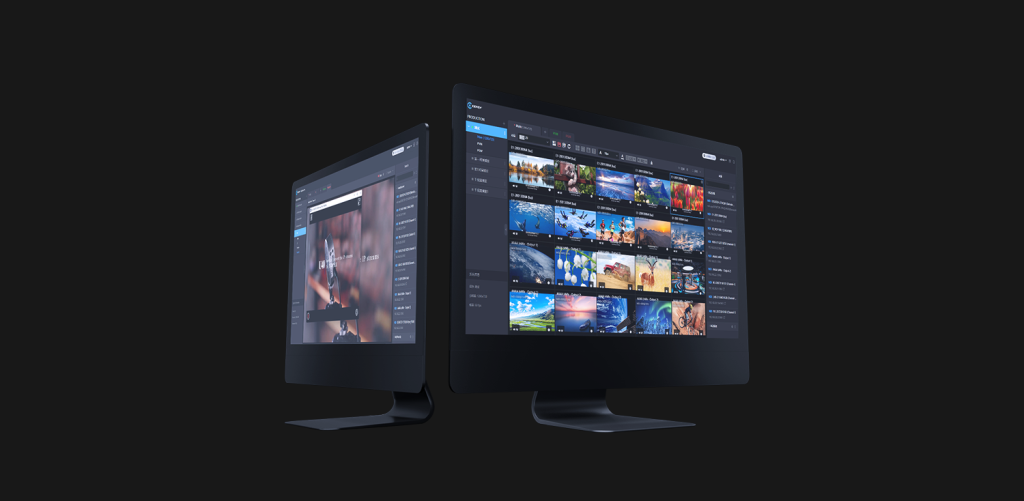

Multiview Pro

Managing, Monitoring and
Real-time Switching

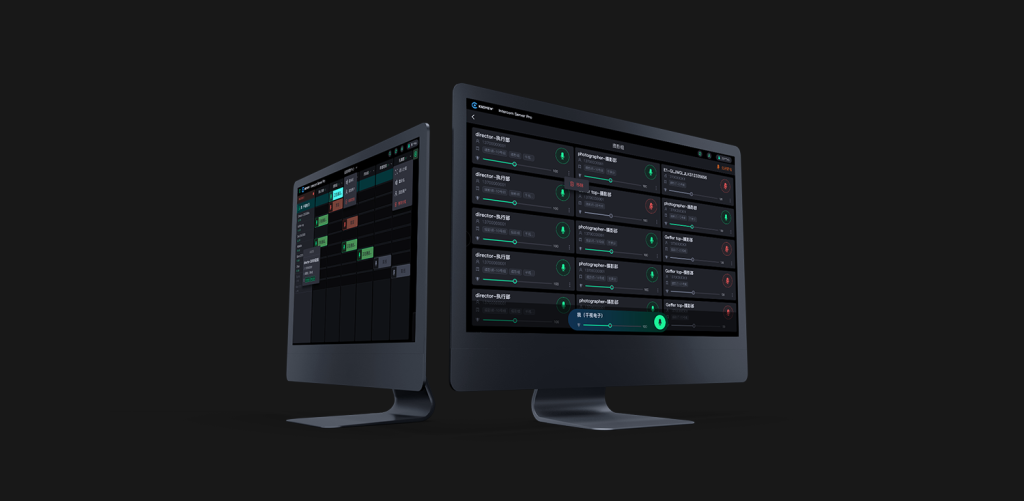

KIS Pro

Full IP-based Audio Intercom
Easy Access to Unlimited Channels

Modular Design,Upgrade Assurance

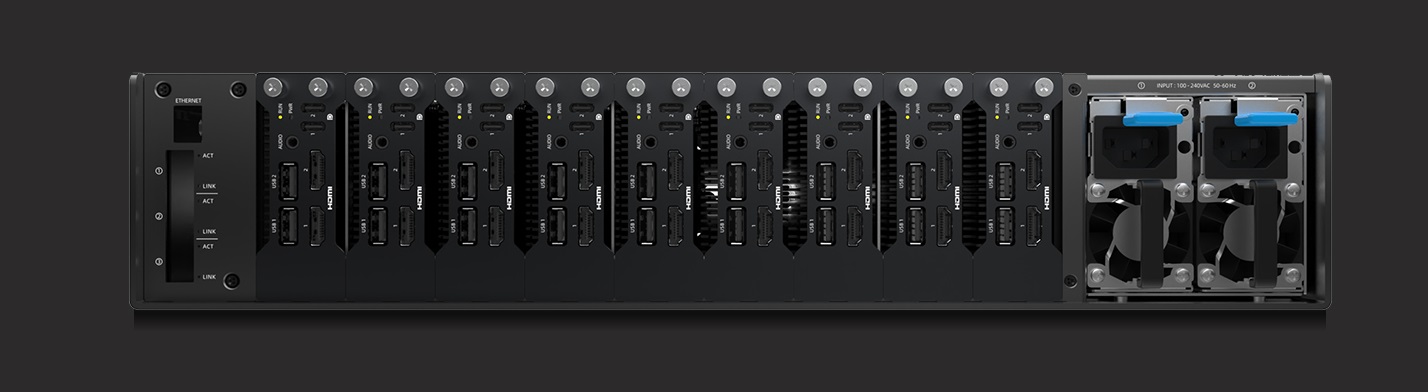

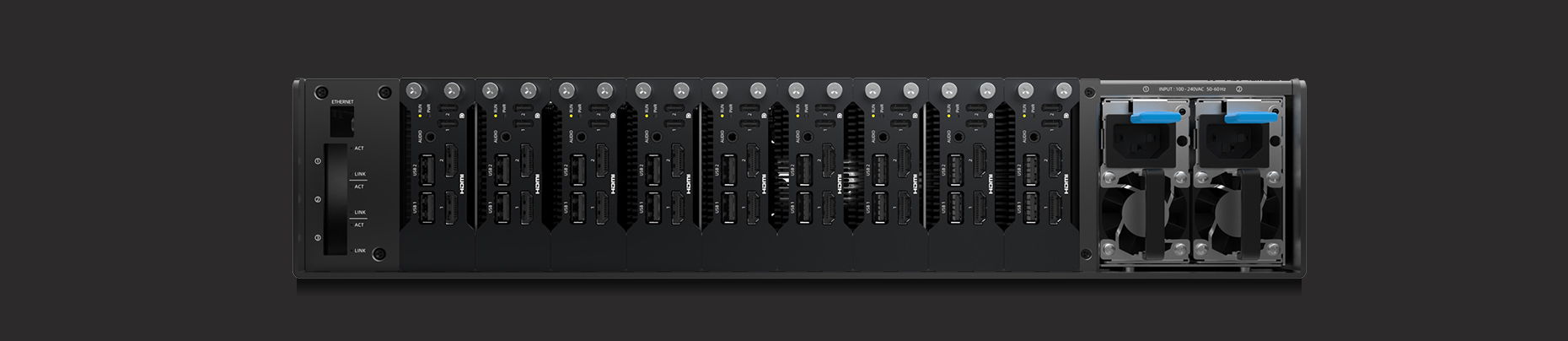

FXC-A8600 Compute Card seamlessly integrates with RF02, leveraging its modular architecture to support up to 4 compute cards within a 2U chassis. This design delivers robust computational power for compact, high-intensity scenarios, replacing traditional standalone servers to streamline deployment and slash operational costs.

Reliability for 24/7 Operations

Enterprise-grade thermal design with aluminum-copper hybrid cooling and intelligent fan control. Industrial-grade durability (0°C–55°C, 5%–95% RH), CE/FCC/RoHS compliance for global deployments.

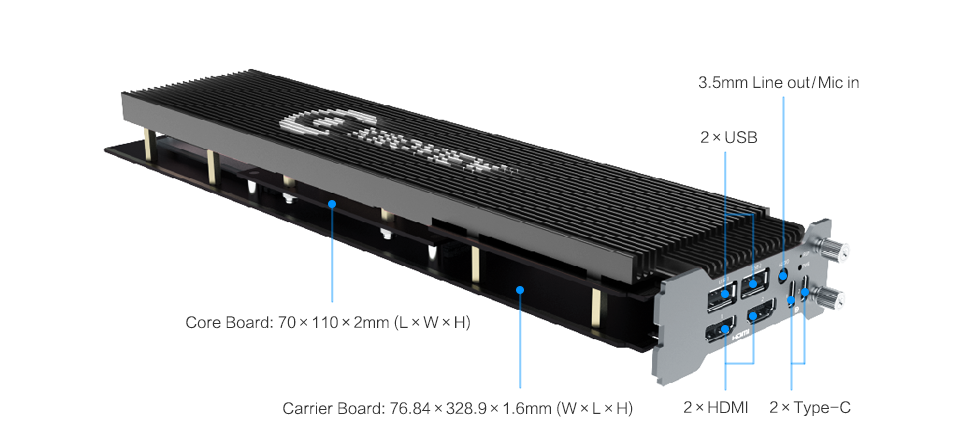

Interfaces and Dimensions

Tech Specs

Model	FXC-A8600 Compute Card
Processer	AMD Ryzen™ Pro 8645HS(8C/16T) 5.0GHz peak performance Radeon™ RDNA3 GPU
Memory	32GB DDR5
Storage Expansion	2×M.2 2280 NVMe SSD
Output Port	2×HDMI 2.1 2×Type-C
Audio I/O	1x 3.5mm Line out/Mic in
Network	2 x 10GbE SFP
USB Ports	2×USB 3.2 Gen1
Power Input	12-19V DC Wide Voltage Input
Operating Environment	Temperature 0℃~55℃, Humidity 5%~95% (non-condensing)
Dimensions	Core Board: 70×110×2mm (L×W×H) Carrier Board: 76.84×328.9×1.6mm (W×L×H) Occupying 2 slots in the RF02
