FN-50/FN-60

FN-50/FN-60

4K Bi-Directional Conversion Cards

  • Seamless Integration with RF02
  • All Protocols, Encoding & Decoding All-In-One
  • Broadcast Level Quality

The Most Powerful 4K Bi-Directional Conversion Cards

The FN-50/FN-60 are high-performance 4K bidirectional conversion cards supporting NDI High Bandwidth, NDI HX, NDI HX3, and protocols like SRT/RTMP/RTSP/HLS/UDP/RTP. They offer 4:2:2 10-bit HDR color quality with NDI 6 support and NDI Bridge Utility for remote transmission, ensuring vibrant and accurate video.

FN-50/FN-60 integrate seamlessly with Cradle Series RF02, and are centrally managed via KiloLink Server Pro for simplified operation and efficient maintenance.

They also support PTZ control, NAS recording, and more—meeting the diverse needs of professional IP workflows. From broadcasting and live events to theaters, conferences, and sports productions, FN-50/FN-60 deliver high-quality video transmission with ease.

Broadcast-grade, Native 4K

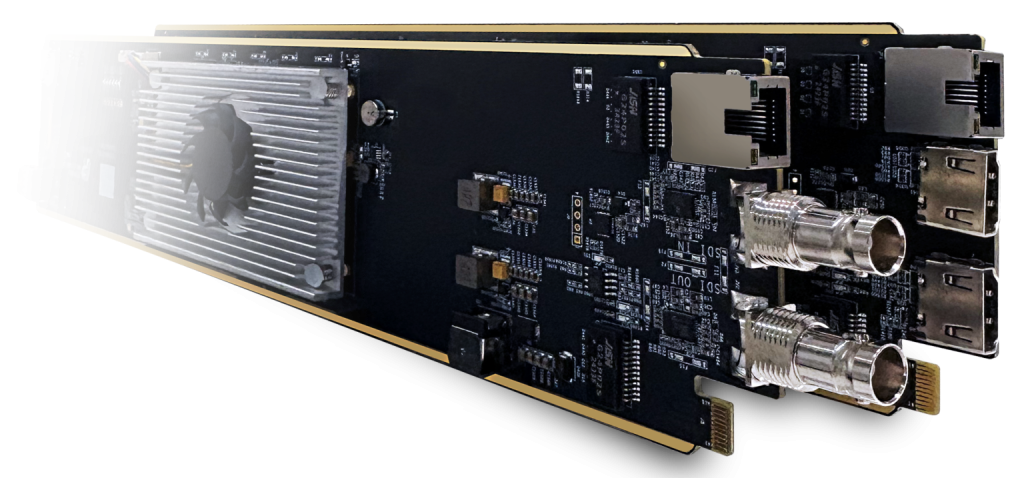

FN-50/FN-60 are 4K UHD codec cards built for the next generation of broadcast-quality video, delivering high performance with ultra-low latency.

  • FN-50 supports 12G-SDI input and loop-out, enabling video encoding to formats like NDI HB, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP—or decoding 4K NDI streams directly to 12G-SDI output.
  • FN-60 supports 4KP60 HDMI input and loop-out, enablingvideo encoding to formats like NDI HB, NDI HX, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP—or decoding 4K NDI streams directly to 4K HDMIoutput.
  • Both FN-50 and FN-60 support up to 4:2:2 10-bit HDR, delivering rich colors and fine detail for a true broadcast-grade viewing experience.

Full Protocol Support, Seamless Connectivity

FN-50/FN-60 fully support mainstream protocols including NDI High Bandwidth, NDI HX, NDI HX3, SRT, RTMP, and RTSP, enabling seamless video streaming to global platforms to meet diverse requirements across NDI scenarios.

With the latest NDI 6 SDK and NDI Bridge integration, the FN-50/FN-60 deliver flexible transmission solutions for remote production, multi-location collaborative live streaming, remote learning, remote court trial connections, and other innovative applications, empowering global creative workflows through a seamless studio environment.

Professional Interlace and Deinterlace Options

FN-50/FN-60 supports interlace streaming media transmission based on H.265 and offers multiple de-interlace options, perfectly fitting the diverse workflow of the broadcasting industry.

Seamlessly Integrated with RF02 for Effortless Management

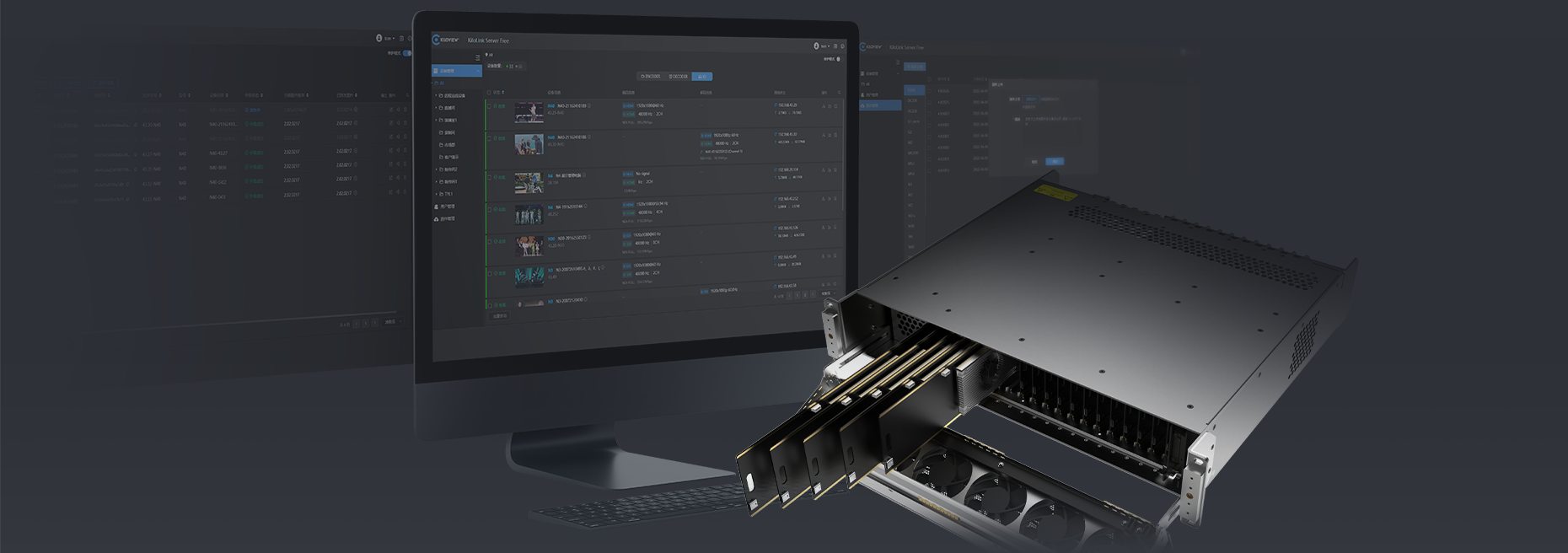

The FN-50/FN-60 seamlessly integrates with the RF02, creating a high-density, multi-channel video encoding and decoding solution. No complex network setup needed—simply plug and play with the internal network. KiloLink Server Pro offers centralized management for real-time device monitoring, batch configurations, and upgrades, simplifying operations, cutting costs, and boosting efficiency.

Perfect PTZ Camera Partner

FN-50/FN-60 offers seamless PTZ control via network protocols, enabling precise, remote camera adjustments for live streaming, recording, and events, improving work efficiency and user experience.

Triple Cooling System for Stable Operation

FN-50/FN-60 is equipped with high-efficiency cooling fans and large-area heat sinks. Combined with the numerous fans integrated into the RF02, this creates a robust triple cooling system that ensures stable, long-term operation of the device.

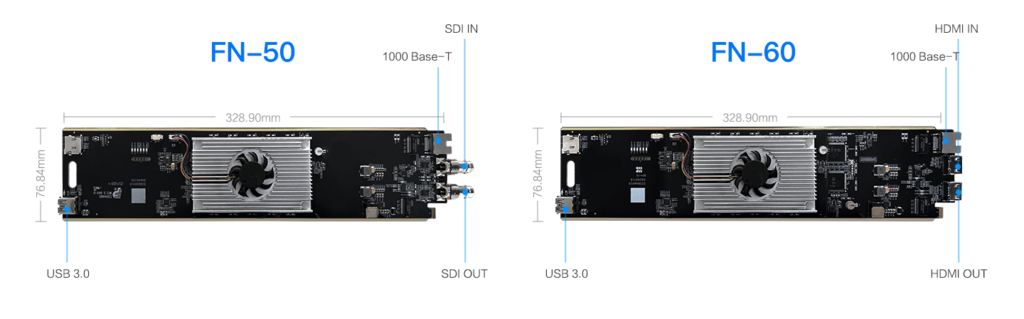

Diagram of Appearance of N40/ N40 Plus

Tech Specs

ModelFN-50FN-60
Video input interface1*12G-SDI1*HDMI 2.0
Video output interface1* 12G-SDI1*HDMI 2.0
Video resolutionInput: up to 3840×2160 60fps (4Kp60), lowest 720p50
Output (decoding or loop out): up to 3840×2160 60fps (4Kp60), lowest 720p23.98
NDI®CODEC featureSpeedHQ (NDI CODEC): SHQ0, SHQ2
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
Audio encoding and decodingNDI Audio, AAC-LC, other software expansion
Typical BitratesSpeedHQ (NDI CODEC):
4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps
480i60: 62.5Mbps

AVC (H.264):
Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60).

HEVC (H.265):
Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60).
Internet protocolsNDI High Bandwidth
NDI HX/HX3
SRT/RTSP/RTMP/HLS/UDP/RTP（*Encoding only）
NDI® codec capacitySupports NDI High Bandwidth, NDI|HX, NDI|HX3, SRT, RTSP, and RTMP simultaneously.
RecordingSupports recording to NAS
PTZ controlNetwork PTZ
ManagementWeb UI and remote management with KILOVIEW KiloLink Server Pro
USB1x USB 3.0 Type-A
PowerPowered by RF02
Power consumption16W Max
Dimension86.84*238.9mm
Operating temperature-20℃~45℃
Storage temperature-20℃~70℃

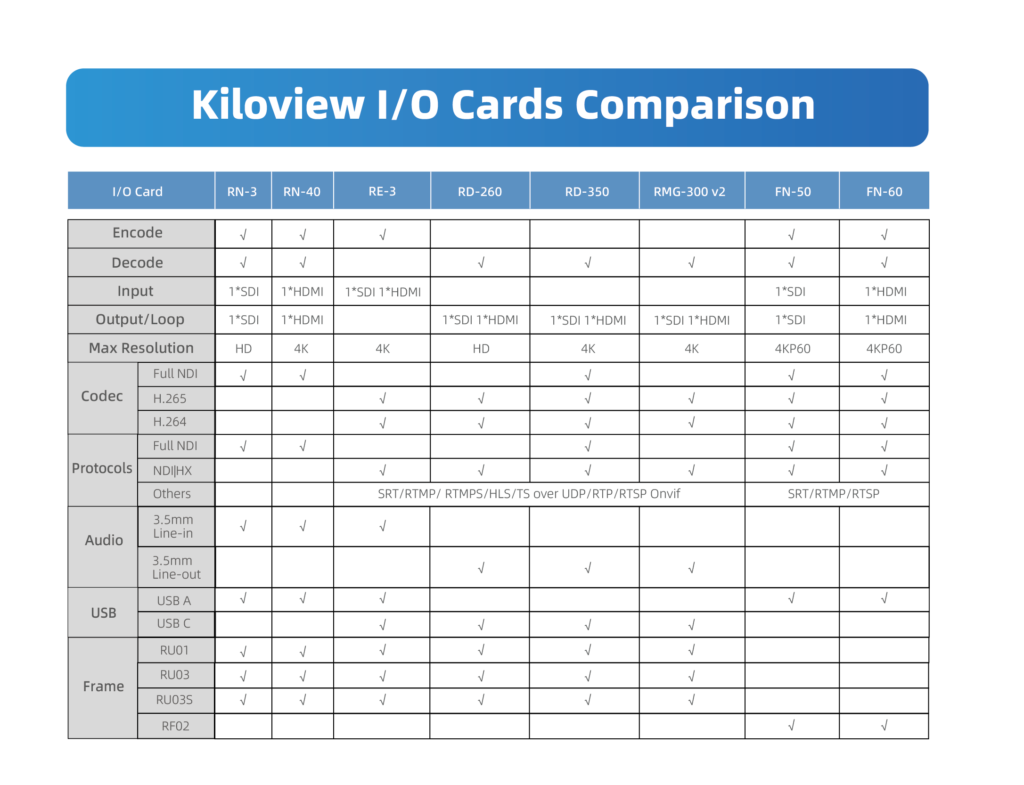

Do you find it hard to pick the right one in our I/O Card Family to fit your workflow?

Here is the chart for your better understanding:
