FMG-400 Media Gateway Card

Create a flexible and efficient media workflow

Transcoding, protocol conversion, streaming media transmission – unleashing unlimited potential
One card with multiple capabilities, seamlessly integrated with RF02

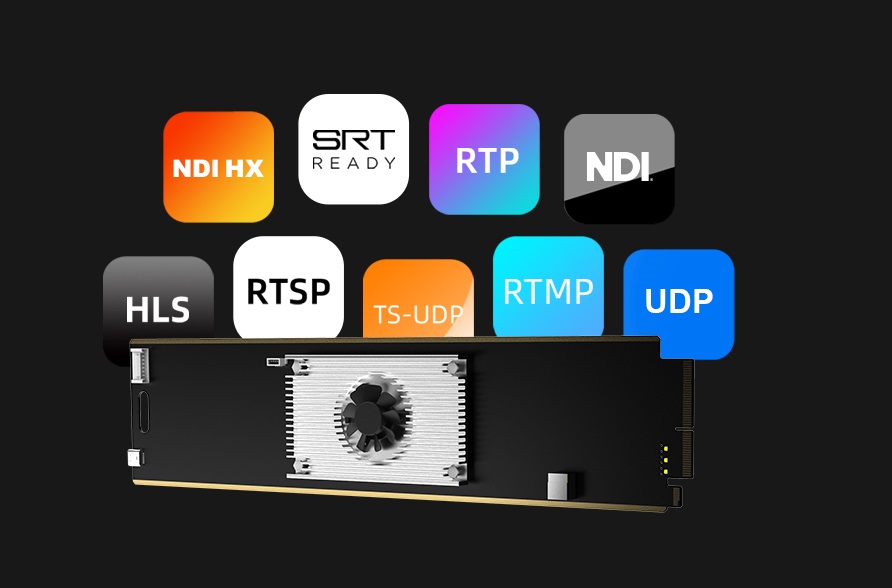

A Comprehensive Streaming Solution

FMG-400 Media Gateway Card is specifically engineered for designed for Cradle Series RF02, delivering industry-leading performance that redefines media operations. It supports seamless transcoding (H.264/H.265/SpeedHQ) and multi-protocol streaming (NDI/NDI HX2/HX3/SRT/RTMP/RTSP/RTP/UDP/HLS), efficiently managing 1×4K P60 or 4×1080P60 video streams for flexible media routing and protocol convertion.

FMG-400 Media Gateway Card also features a Bonding Mode that integrates with Kiloview P-Series 4G/5G bonding encoders, enabling secure remote device management and media workflow control.

Say Goodbye to Media Processing Hassles with FMG-400

FMG-400 is powered by a high-performance chip, making it effortless to convert 1*4KP60/4*1080P60 video streams in H.264, H.265 and SpeedHQ formats. Whether you need stunning 4K visuals or multiple 1080P streams, it delivers exceptional quality with ease.

It also supports a wide range of audio formats, including AAC, MP3, and PCM(*More protocols will be supported in the future), covering all your audio needs.

During use, you can adjust the encoding format, resolution, and other parameters according to your needs, allowing the device to perfectly adapt to multiple scenarios such as live streaming and video conferencing. It also has on-demand streaming function, which only converts when needed, improving resource utilization efficiency.

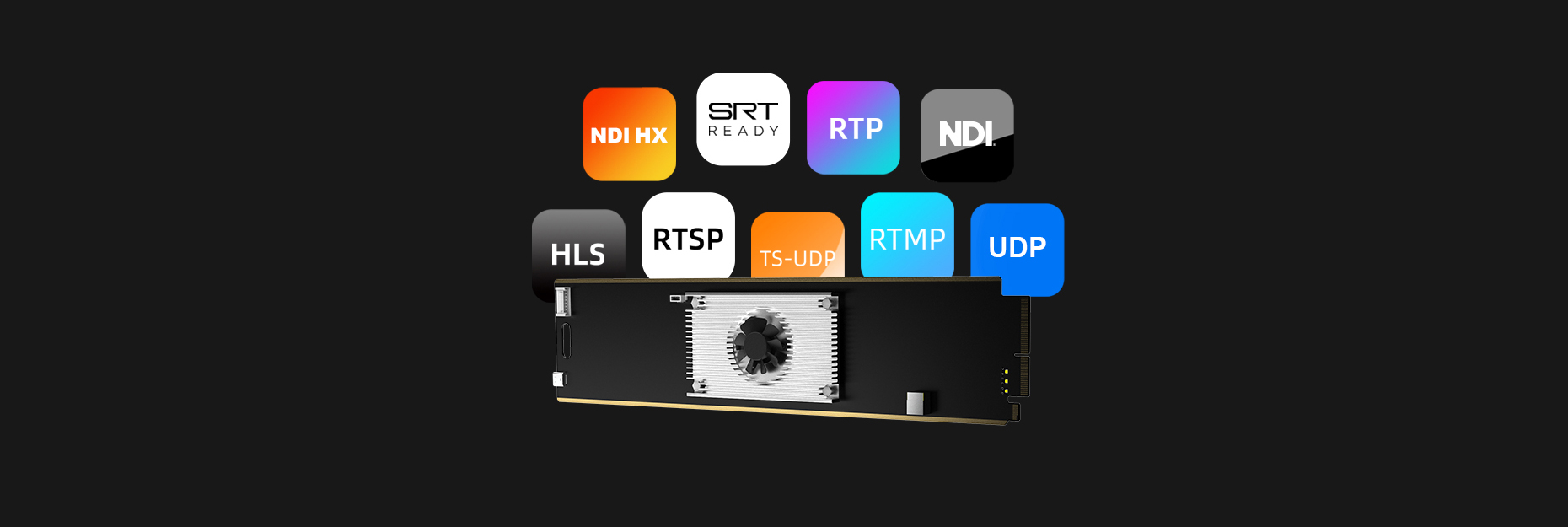

High Performance, Versatile Workflows

FMG-400 supports flexible media stream push/pull operations, enabling on-demand unicast or multicast configurations to address complex transmission scenarios. It delivers single-source input with multi-protocol output capabilities, including single-protocol multi-output distribution, ensuring efficient streaming media management.

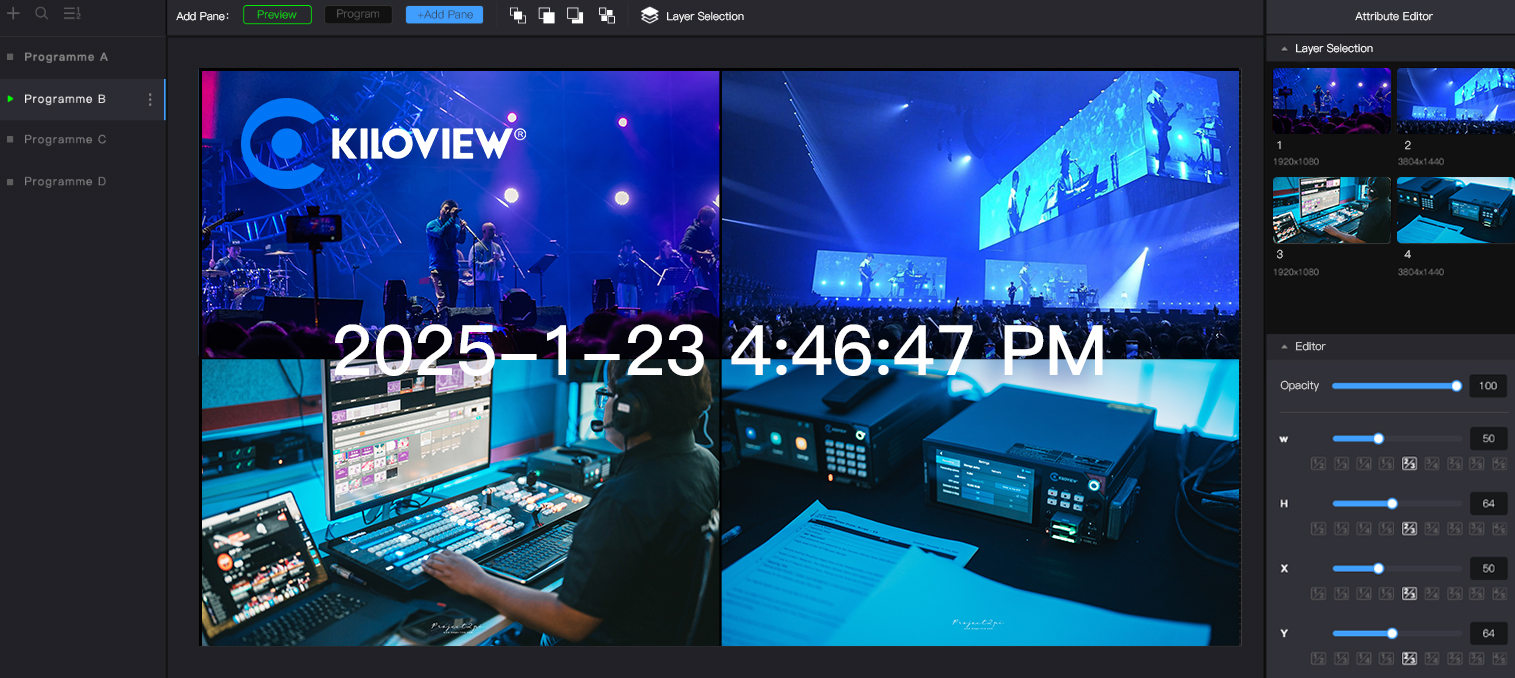

Seamless Multiview Output with Fully Customizable Layouts

FMG-400 offers flexible multiview output, supporting up to 4 grid, allowing effortless integration of video sources from various protocols. With its powerful design tool, you can fully customize the layout, adding elements like logos, text, timestamps, and more, giving you complete control over your visual presentation and enabling dynamic, eye-catching content displays.

*Note: This feature is unavailable in the current version and will be supported in future updates.

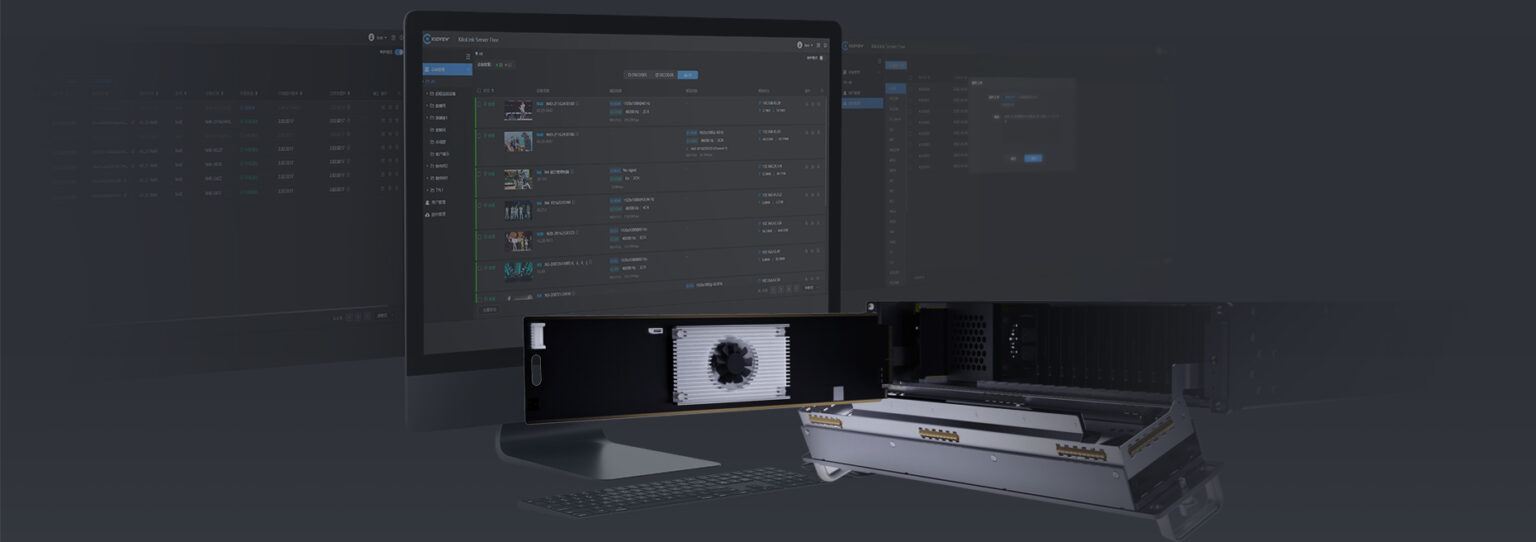

All-In-One Management with RF02 Integration

FMG-400 effortlessly integrates with Media Center RF02, powered by KiloLink Server Pro, to provide a unified, intuitive interface for managing all your video streaming needs. Whether it’s transcoding, protocol conversion, or monitoring input/output sources, everything is simplified for seamless operation. The built-in media control panel function makes switching audio and video sources fast and intuitive, improving both your productivity and experience.

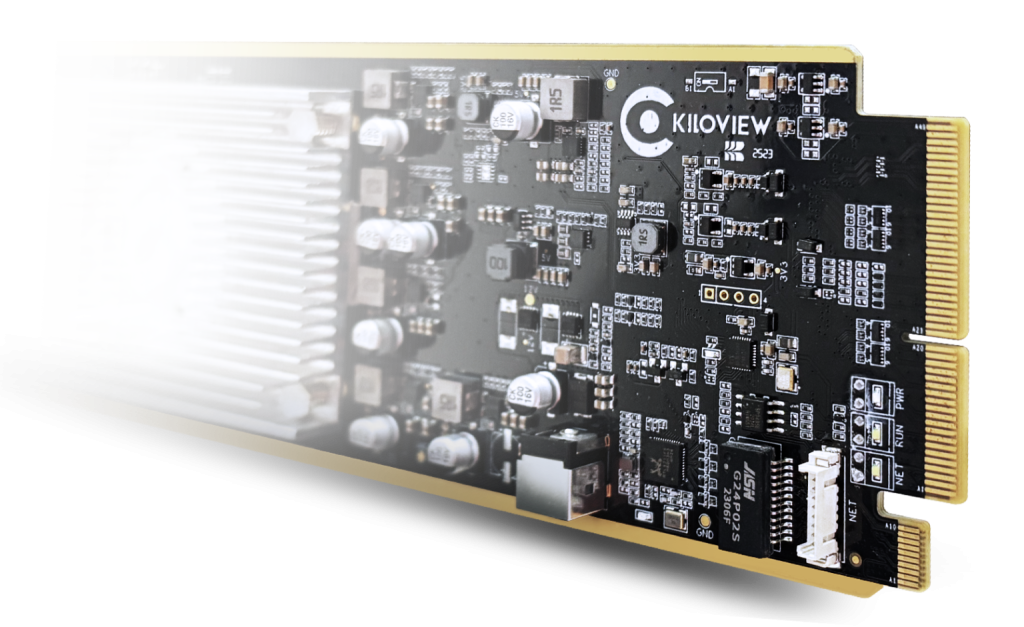

Smart Temperature Control & Fan Cooling for Peak Performance

FMG-400 is equipped with an intelligent cooling system that adapts to your needs. With built-in sensors, it keeps track of the device’s temperature and automatically adjusts fan speed to match the workload, ensuring consistent performance even during demanding tasks. This advanced cooling technology prevents overheating, boosts reliability, and helps extend the device’s lifespan.

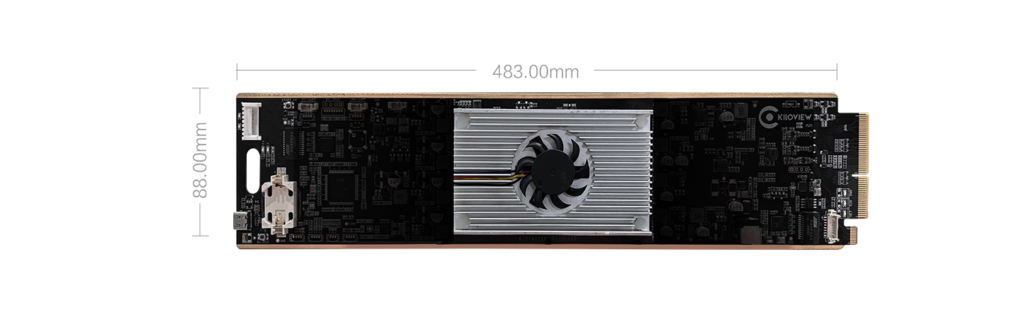

Dimension

Tech Specs

Model	FMG-400
Streaming Protocol Input/Output	NDI、NDI HX、SRT、RTMP、RTSP、RTP、UDP、HLS(More to come with customizable SIP/GB-T28281 protocol conversion)
Video Decoding Formats	H.264 / H.265 / SpeedHQ (NDI High-bandwidth)
Maximum Video Encoding Performance	H.264/H.265 Encoding: 4K@60Hz, 200Mbps @ Level 5.1 Main Tier ITU-T H.264 Encoding: High Profile/Main Profile/Baseline Profile @ Level 5.2
Audio Decoding / Audio Bitrate Range	8/16/24bit 8k~192kHz pcm
Grid Support	Supports up to 4-grid layouts (capable of encoding/streaming a single multi-screen video signal) *Note: This feature is unavailable in the current version and will be supported in future updates
Management	Web page/ KiloLink Server Pro
Processor	8-core ARM64 high-performance processor (Cortex A73 @ 1.8GHz)
Memory	12GB DDR4
Storage	16GB eMMC
OS/Software	Linux 5.10 / KiloLink Server RF version
Management and Control	Web / HTTP API
Dimensions	483mm x 487mm x 88mm [Standard 2RU]
Weight	500g
Cooling	Active fan cooling / Automatic temperature control
Maximum Power Consumption	≤ 6W
