D260

D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything your need about decoding is packaged in this single unit with low cost.

Upgrading Decoding Performance with H.265/H.264

D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.

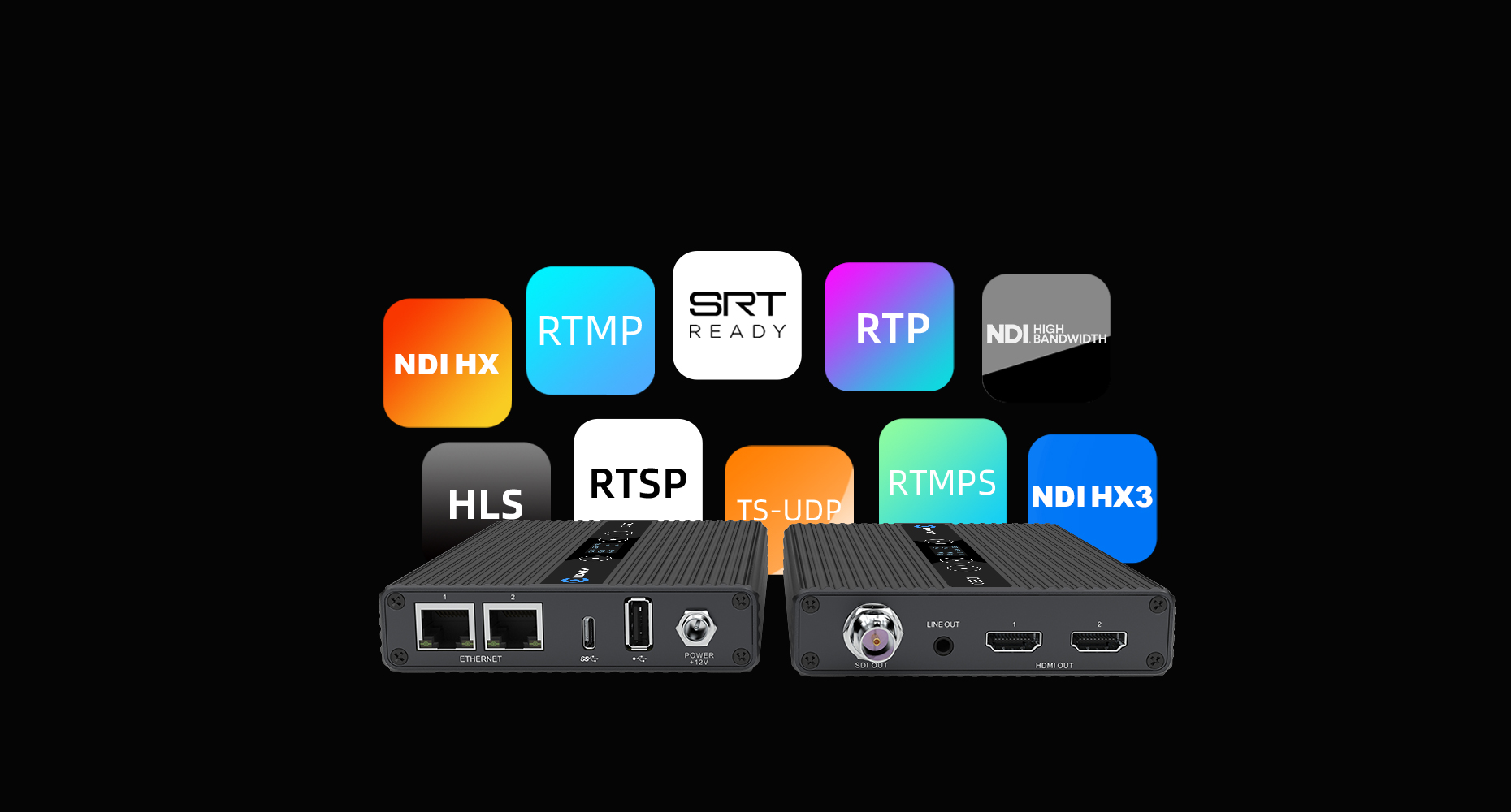

Comprehensive Protocol Support

D260 supports full protocol decoding, including NDI High Bandwidth, NDI HX, NDI HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP. With its comprehensive functionality, it can meet a wide range of streaming requirements.

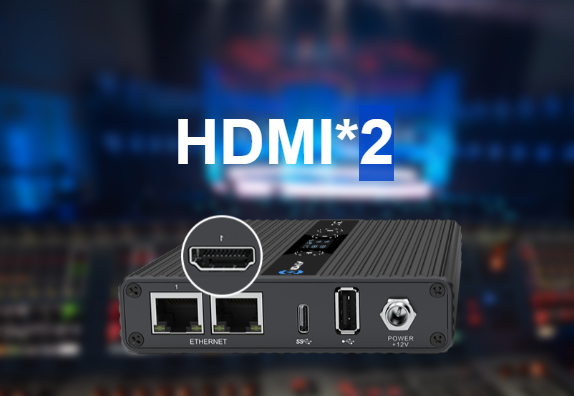

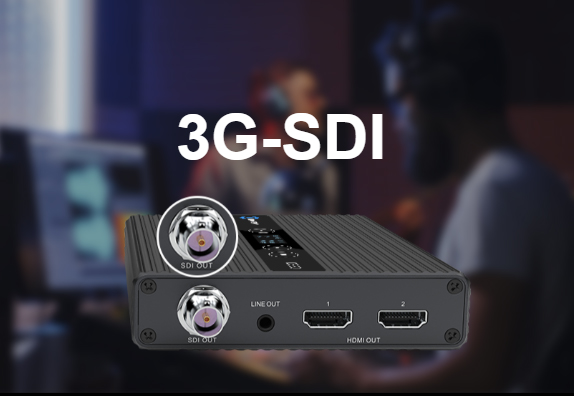

Extended Output Interfaces

As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.

16 Preview + 4 Output

D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).

Powerful Audio Decoding

D260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, It’s also capable of switching audio On/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.

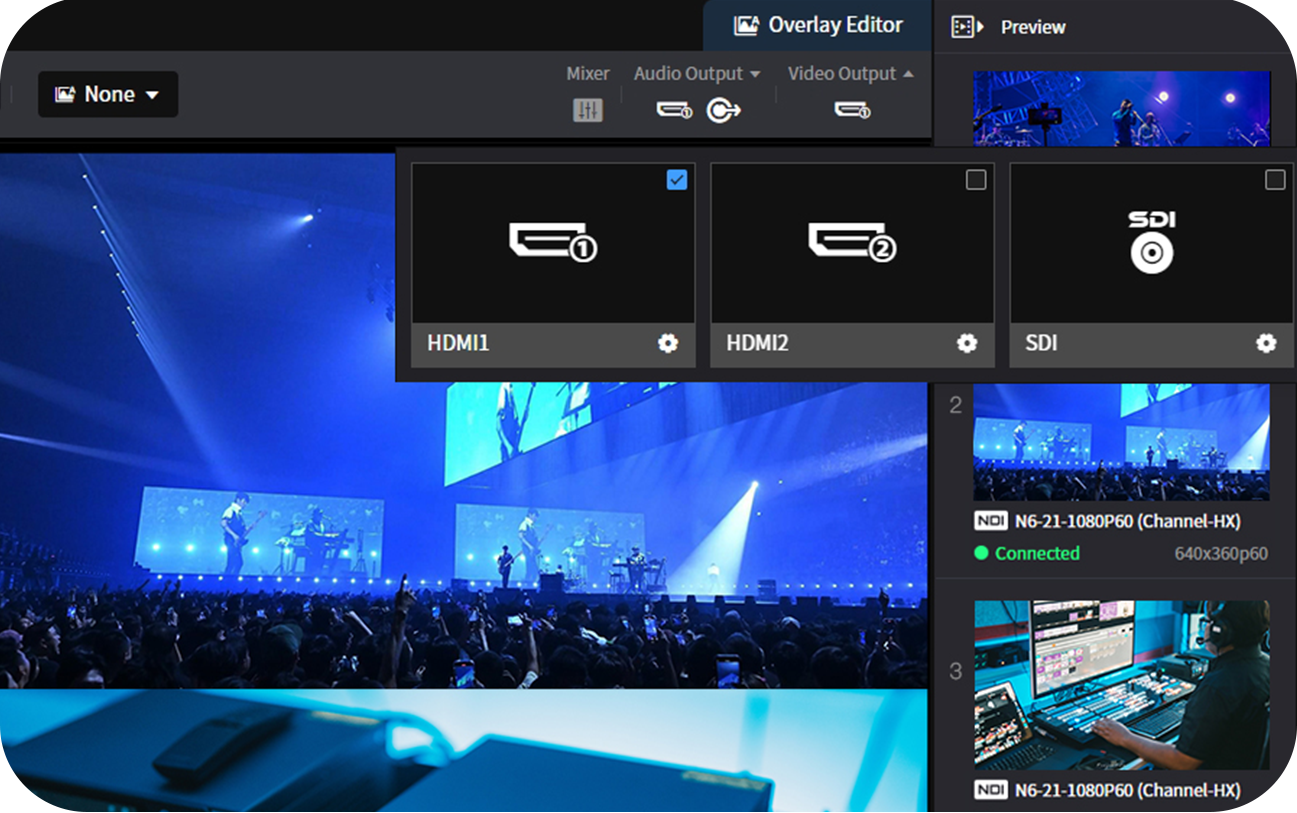

Custom Layouts

Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display(bit-rate and resolution) can be customized.

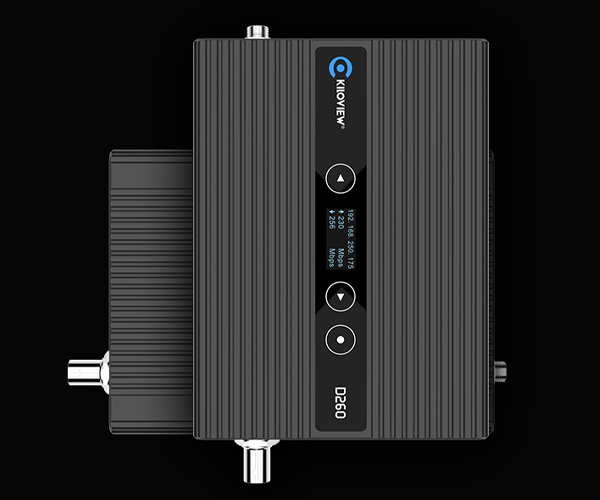

Display and Touch Button

D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.

More Features

Appearance of D260

Applications

Splicing Screen Wall

IPTV

Online Teaching

Video Conference

Tech Specs & Features

ModelD260
Video Output2*HDMI
1*3G-SDI
Audio OutputHDMI, SDI and 1*3.5mm Line out
Video FormatsH.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2；
H.265(HEVC) Compatible with Main Profile, up to Level 5.1
Video Decoding4 channels of 1080P60, 4 channels of 1080P30, 3 channels of 4K30P, 2 channels of4KP60 in H.264(AVC)/H.265(HEVC)
4 channels of 1080P60, 3 channels of 1080P30, 1 channel of 4K30P in SpeedHQ (NDI HB)
Audio FormatsAAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
Streaming protocolsNDI|HB/NDI|HX2.0/NDI|HX3.0/SRT/RTMP/RTMPS/ HLS/TS over UDP/RTP/ RTSP
Display0.96” LCD with touch buttons
LayoutsCustom 1/2/3/4 layouts
IntercomYes
OSDYes
Network ConnectionsEthernet Ports: 2*10/100M/1000M
USB Ports1*USB 2.0 Type-C
1*USB 2.0 Type-A
Power SupplyDC 12V/1A
ManagementWebUI/KiloLink Server
Power Consumption8W(MAX)
Size140*104.00*25.00mm
Weight360g
Operating Temperature-20℃~60℃
Support DownloadDocs & Firmware

Quick Comparison of our Decoders

Product TypeProduct ModelOutput InterfaceResolutionDecoding Performance
H.265 4K Video DecoderD3503G-SDI + HDMI 2.0*2SDI: up to 1920×1080@60Hz;
HDMI: up to 3840×2160@60Hz
Up to 9 Video Streams Simultaneously Decoding, 1/2/3/4/5/6/7/8/9 Splitting Screen and Dynamic Switching Supported
4-Channel H.265 Video DecoderD2603G-SDI + HDMI 2.0*2SDI: up to 1920×1080@60Hz;
HDMI: up to 1920×1080@60Hz		Up to 4 Video Streams Simultaneously Decoding, 1/2/3/4 Splitting Screen and Dynamic Switching Supported
