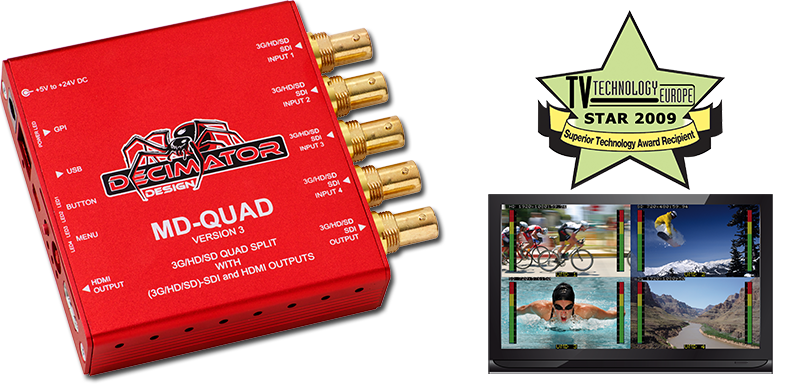

MD-QUAD V3

1 to 4 Channel Multi-Viewer / Quad-Split
with SDI and HDMI outputs for 3G/HD/SD
and Custom Layouts

26 Selectable Output Formats
54 Test Patterns including Luma and Chroma Zone-plates

Audio Tone Generator
Horizontal and/or Vertical image flipping per window
Low cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
Tallies can be applied to either Tally Boxes (Default) or Border
Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
Load and restore Custom Layouts
Fast switching between inputs using Full-Screen scaling
Selectable output format in both Full-Screen and Multi-Viewer mode
Low latency buffering for each input allowing non-synchronous inputs
Linked (3G/HD/SD)-SDI and HDMI outputs
4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per window
Pass-Through mode allowing any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
USB port for control and updates
Locking DC Power Socket
5 GPI on standard RJ-45 connector connector for Tallies and Remote Switching
RS422/485 is also include on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol
The following is included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket
