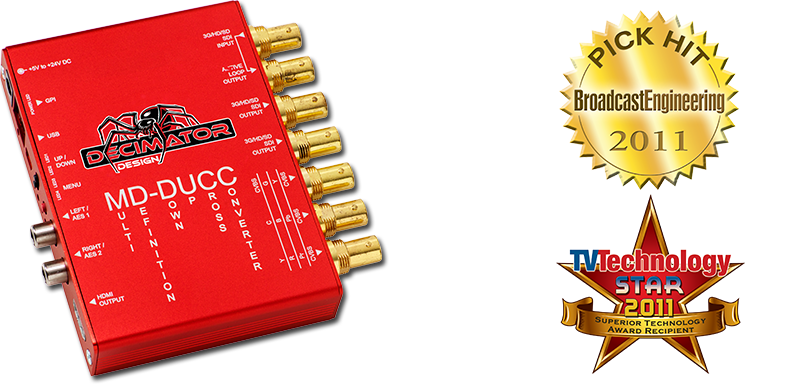

MD-DUCC

Multi-Definition Down Up Cross Converter
(3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video
with 2 x AES/EBU or 2 x Analogue Audio Outputs

Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
Horizontal and/or Vertical image flipping via the built in scaler.
Auto detects 3G, HD or SD (26 Formats in total)
Full 10-bit data path and multipoint interpolation
Professional motion-adaptive de-interlacing
True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is
Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
Full 16-Channel Audio metering with:

The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input
When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input
HDMI output
Selectable analogue video output from:

2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
GPI on RJ-45 for Tallies
3G/HD/SD-SDI Active Loop-Through Output
De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
LEDs for status and buttons for basic configuration
USB port for control and firmware updates
Locking DC Power Socket
The following is also included with the unit:
