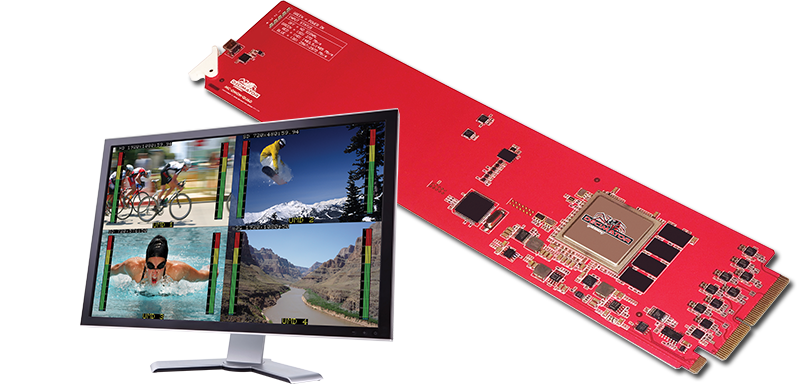

MC-DMON-QUAD

1 to 4 Channel (3G/HD/SD)-SDI MultiViewer
with Custom Layouts

Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
Low cost miniature (3G/HD/SD)-SDI 1 to 4 MultiViewer or 4 to 1 input multiplexer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
Audio ID overlay
3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol
Tallies can be applied to either Tally Boxes (Default) or Border
Tally boxes allows for up to 4 Tallies per window
Fast switching between inputs using Full-Screen scaling
Selectable output format in both Full-Screen MultiViewer mode
Low latency buffering for each input allowing non-synchronous inputs
4 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)
Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per quadrant
In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs
USB Mini B port for control and firmware updates
Supports openGear DashBoard for control
The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485
