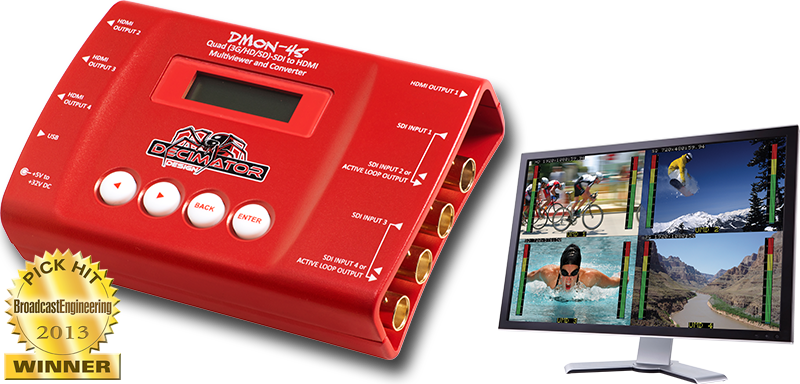

DMON-4S

DMON-4S

4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters

Download PDF Brochure
Hardware Manual PDF
USB Control Panel
  • Multi-View mode now includes 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Support for both 3G level A and B on the inputs.
  • Horizontal and/or Vertical image flipping per window
  • Includes 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them. For example you could use the unit to have:
  • 4 independent SDI to HDMI converters
  • 3 independent SDI to HDMI converters with a quad-split output
  • 2 independent SDI to 2 x HDMI converters with loop through
  • A single SDI or Multi-View to 4 x HDMI outputs
  • Inputs 2 and 4 can be individually changed to output active loop copies of inputs 1 and 2 respectively.
  • Multi-View mode offers:
  • Custom Layouts with various standard layouts
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selection of audio from any input
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • Low latency buffering for each input allowing non-synchronous inputs
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per window
  • The DMON-4S is a truly portable converter, that incorporates our new easy to use LCD and button control system.
  • This unit also includes:
  • USB port for control and firmware updates
  • Heavy duty metal box
  • Metal Thread Locking DC Power Socket
  • Power Supply, HDMI Cable and USB Cable
