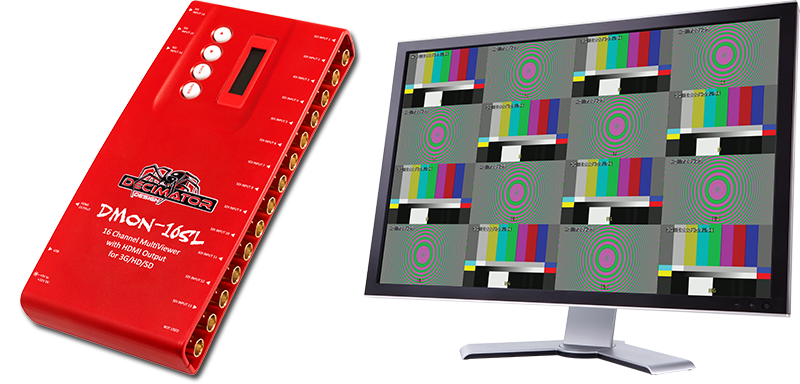

DMON-16SL

1 to 16 Channel MultiViewer
with HDMI output for 3G/HD/SD
and Custom Layouts

Support for both 3G level A and B on the inputs.
Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
Audio ID overlay
Load and restore Custom Layouts
Fast switching between inputs using Full-Screen scaling
Selectable output format in both Full-Screen and Multi-Viewer mode
Low latency buffering for each input allowing non-synchronous inputs
16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per window
Pass-Through mode allowing any of the 16 inputs to be selected and routed to the the HDMI output
In Pass-Through mode the selected input is passed through to the HDMI output
The DMON-16SL is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
This unit also includes:
