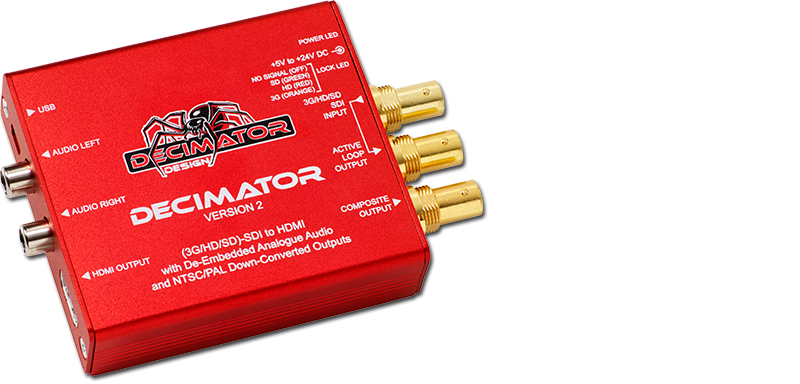

DECIMATOR 2

DECIMATOR 2

Miniature (3G/HD/SD)-SDI to both HDMI and NTSC/PAL
with simultaneous scaling on both outputs and
De-embedded Analogue Audio

Download PDF Brochure
Hardware Manual PDF
USB Control Panel
  • Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources
  • Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame
  • HDMI output with optional full scaling and aspect ratio conversion.
  • Down-converted Composite output with:
  • NTSC or PAL is selectable for 3G/HD inputs
  • SD will be passed unchanged
  • Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of either:
  1. 16:9 to 16:9 Anamorphic
  2. 16:9 to 4:3 Letterbox
  3. 16:9 to 4:3 Centre Cut (Crop to 4:3)
  • Full 10-bit data path and multipoint interpolation
  • 16 times over-sampling for Composite Output
  • Passes EIA-708/608 Closed Captions to the Composite Output
  • Full 16-Channel Audio metering displayed on the HDMI output with:
  • Any of the 4 audio groups individually selectable
  • Vertical or Horizontal Bars
  • AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
  • Bar & Float, Bar only or Float only
  • Transparency adjustment
  • Separate Bar and Float Ballistics control
  • Adjustable Reference level
  • Red, Yellow and Green Range adjustment
  • Bar thickness adjustment
  • Margin adjustment
  • Adjustable Graticules Generator displayed on the HDMI output with:
  • Separate enables for Safe Action, Safe Title and Centre Cross
  • Adjustable position for either Safe Action or Safe Title
  • Adjustable colours for Safe Action, Safe Title and Centre Cross
  • Text Overlays displayed on the HDMI output with:
  • Adjustable Foreground and Background colours
  • Adjustable 16 character text
  • Current input format status
  • De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS
  • 3G/HD/SD-SDI Active Loop-Through Output External Dip-Switch Configuration
  • USB port for control and firmware updates
  • Locking DC Power Socket
  • The following is also included with the unit:
  • Power Supply
  • HDMI Cable
  • USB Cable
  • Mounting Bracket
