Epoch | 4K Neutron Features

Bi-directional I/O’s provide unrivalled flexibility. 4K Neutron provides flexibility and performance like no other with 3 industry-standard BNC video connectors, each allowing 3G/HD/SD-SDI inputs or outputs. Each BNC connector can be any frame-rate frequency of your choosing.

4K/UHD/2K/HD SDI I/O features

	12/10/8-BIT YUV	10/8-BIT 3D YUV	10/8-BIT RGB	12-BIT RGB
4K/UHD @ 23, 24, 25 fps	YES	NO	YES*	NO
4K/UHD @ 29, 30 fps	YES	NO	NO	NO
2K/HD @ 23, 24, 25, 29, 30 fps	YES	YES	YES	YES
2K/HD @ 48, 50, 59, 60 fps	YES	YES	NA	NA

NA - Not applicable.*Only at 8-bit.

Compare Features

	Epoch \| Neutron	Epoch \| 4K Neutron	Epoch \| 4K Neutron LP
SD-SDI	2	2	2
1.5G HD-SDI	3	3	3
3G-SDI (Level A+B)	NO	3	3
Dual Link 1.5G (4:2:2:4/4:4:4:4)	YES	YES	YES
Dual Link 3G (Level A+B)	NO	YES	YES
Quad Link 1.5G	NO	NO	NO
Quad Link 3G (Level A+B)	NO	NO	NO
2K/HD/SD HDMI Output	YES	YES	YES
UHD HDMI Output	NO	YES	YES
Low-latency hardware keyer	YES	YES	YES
Multi-card Interlock	YES	YES	YES
Colour space converter	YES	YES	YES
Customisable pixel formats	YES	YES	YES
Dedicated Reference Input	YES^	YES^	NO
Breakout cable 8 x AES audio I/O 2 x analogue audio monitoring RS-422 Auxiliary Reference Input	YES^	YES^	NO1

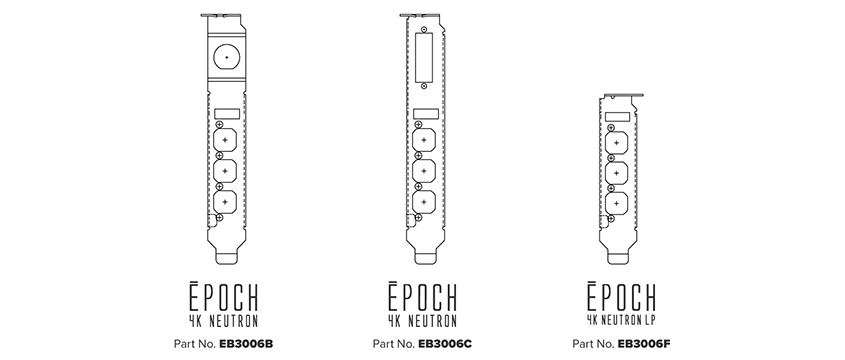

Optional connectivity

The 4K Neutron range offers a variety of low-profile and full-height shield options, allowing the same physical hardware to be deployed in any number of applications, and inside any number of enclosures or chassis.

Part Number	Product	Description
EB3006B	Epoch \| 4K Neutron	Full-height: AUX Reference Input
EB3006C	Epoch \| 4K Neutron	Full-height: AES Audio I/O / Analogue Audio Out / RS-422 / Auxiliary Reference Input
EB3006F	Epoch \| 4K Neutron LP	Low-profile: HDMI

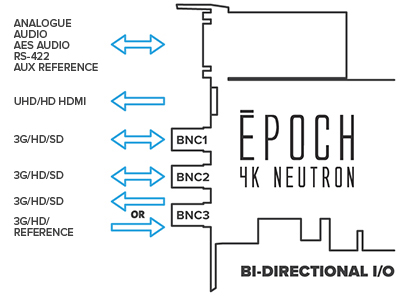

Bi-directional I/O’s provide unrivalled flexibility

4K Neutron provides flexibility and performance like no other, with 3 industry-standard BNC video connectors, each allowing 3G/HD/SD-SDI inputs or outputs. Each BNC connector can be any frame-rate and frequency of your choosing.

4K/UHD HDMI monitoring

4K Neutron includes a cost-effective HDMI monitoring solution supporting up to 4K/UHD resolutions. Enjoy simultaneous 4K/UHD HDMI & SDI from 4K Neutron.

Maintaining a 12-bit processing pipeline

A 12-bit image processing pipeline is standard on all Bluefish444 video cards. This allows 8, 10 & 12-bit SDI video signals to be produced from 8, 10, 12 & 16-bit pixel formats providing the highest image quality available from your source material. A 12-bit image pipe means that 4096 discrete values of red, green & blue are maintained per pixel; that’s 4 times the colour precision of a traditional 10-bit processing pipeline!

Maintaining the highest quality RGB YUV

Colour space conversion image processing includes a fully programmable 4 x 4 x 33-bit colour matrix providing the highest quality colour space conversions that are a standard requirement in professional video workflows. The fully programmable 4 x 4 x 33-bit colour matrix reduces colour space conversion errors and ensures the highest quality colour accuracy during capture, monitoring and mastering.

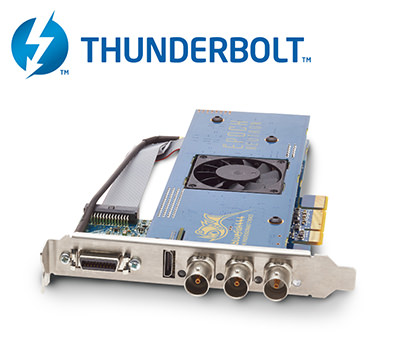

Thunderbolt expansion chassis compatibility

Popular PCI Express and Thunderbolt expansion chassis' are designed to be light and portable, and 4K Neutron is compatible with them all, from the smallest single slot devices, right through to much larger multi-slot devices.

For the full list of qualified third-party chassis', visit Bluefish444 Certified Solutions page.

Low-latency video keyer

The 4K Neutron has a low-latency hardware video keyer, allowing video layers to be combined in hardware with microseconds of delay. This feature allows animated logos, captions, tickers, and more to be keyed over live video feeds at full 12-bit precision, and with minimum input to output delay. The hardware keyer can also function as an image pre-multiplier to assist in previewing images with alpha data.

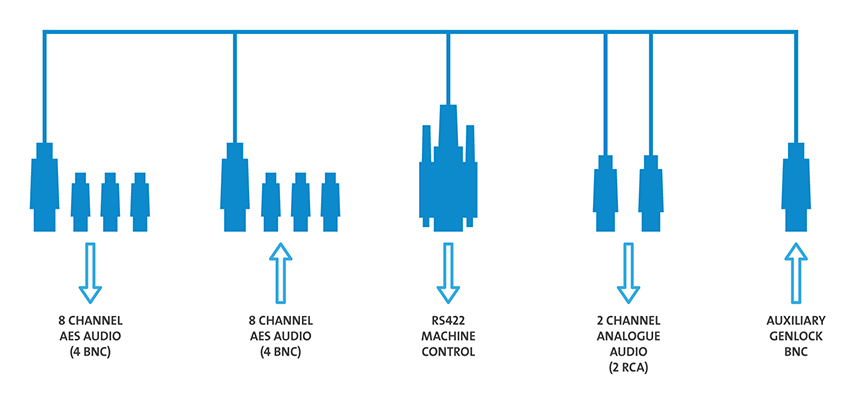

Maximum connectivity

4K Neutron features additional connectivity beyond the 3 HD-SDI/Reference BNC and HDMI output that includes;

RS-422 machine control for control of VTR’s and other serial-controlled devices.
8 channels of AES EBU audio INPUT and OUTPUT for 7.1 surround sound monitoring. Capture and playout digital audio signals in crystal-clear quality.
2 channels of Analogue Audio for quick and simple, high quality audio monitoring.
Auxiliary Reference (INPUT) connector frees the 3rd BNC for 3G/HD/SD video I/O.

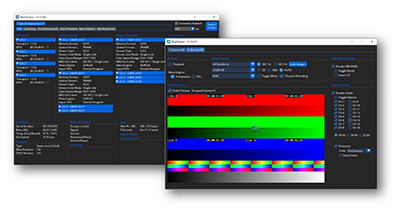

The best tools for professionals

The Bluefish Windows Installer provides professionals with the right tools for card information and ease of use with industry-standard applications.

BlueToolBox provides extensive card information including card states, input and output video modes and colour space, to assist with making sure that signals are being correctly sent to or from the card for troubleshooting purposes.

The installer also provides BlueFirmwareUpdater to easily switch between card firmware modes depending on the application and use requirements.

Cross-platform support with Industry leading 3rd-party software

4K Neutron leverages a decade of Bluefish444 software development. It is compatible with industry-leading software developed by Bluefish444 and by 3rd-party developers using our Windows, Linux and macOS Software Development Kit. Strong partnerships with companies like Adobe, Avid, Assimilate, NVIDIA, AMD and many more, allow Bluefish444 to deliver hardware, drivers and software plug-ins for the creative industry.
