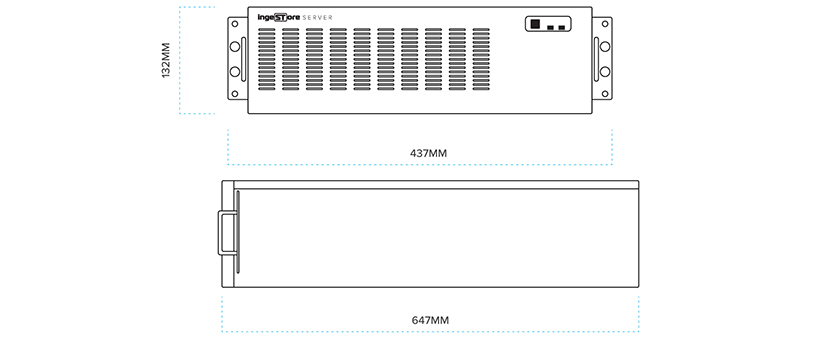

| PHYSICAL DIMENSIONS | ||
|---|---|---|
| IngeSTore Server 3G | ||
| Height | 132mm (3RU) | |
| Width (including side rails) | 437mm | |
| Length | 647mm | |
| Weight | 35kg | |
| HARDWARE | ||
|---|---|---|
| IngeSTore Server 3G | ||
| SYSTEM | ||
| CPU | Dual Xeon E5 | |
| Cores | 20 | |
| DDR memory | 64GB | |
| System drive | SSD | |
| Redundant system drive | YES | |
| Power supply (94+) (with redundancy) | YES | |
| Windows 10 Pro 64-bit | YES | |
| CONNECTIVITY | ||
| RJ45 Gigabit Ethernet LAN ports | 2 | |
| RJ45 dedicated IPMI LAN port | 1 | |
| USB 3.0 ports | 4 | |
| USB 2.0 ports | 4 | |
| USB 2.0 ports (Type A) | 1 | |
| Serial port (Fast UART) | 2 | |
| PCIE DEVICES | ||
|---|---|---|
| IngeSTore Server 3G | ||
| SDI video card | Bluefish444 Epoch | 4K Supernova S+ | |
| GPU (DVI-I, DP 1.2, VGA outputs) | Nvidia Quadro P2000 5GB | |
| Network Interface Card (NIC) | Dual Port 10Gb Ethernet SFP+ | |
| VIDEO I/O | ||
|---|---|---|
| IngeSTore Server 3G | ||
| SDI VIDEO | ||
| SD SMPTE 295M | 4 | |
| HD 1.5G SMPTE 292M | 4 | |
| 3G (Level A+B) SMPTE 424M | 2 | |
| VIDEO FORMATS | ||
|---|---|---|
| IngeSTore Server 3G | ||
| SUPPORTED YUV SDI VIDEO FORMATS | ||
| (2K) 2048x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fps | YES | |
| (2K) 2048x1080P/PsF @ 48, 50, 59.94, 60 fps | YES | |
| (HD) 1920x1080p/PsF @ 23.98, 24, 25, 29.97, 30 fps | YES | |
| (HD) 1920x1080p/PsF @ 48, 50, 59.94, 60 fps | YES | |
| (HD) 1920x1080i @ 25, 29.97, 30 fps | YES | |
| (HD) 1280x720p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps | YES | |
| (SD) 720x576i @ 25 fps PAL | YES | |
| (SD) 720x486i @ 29.97 fps NTSC | YES | |
